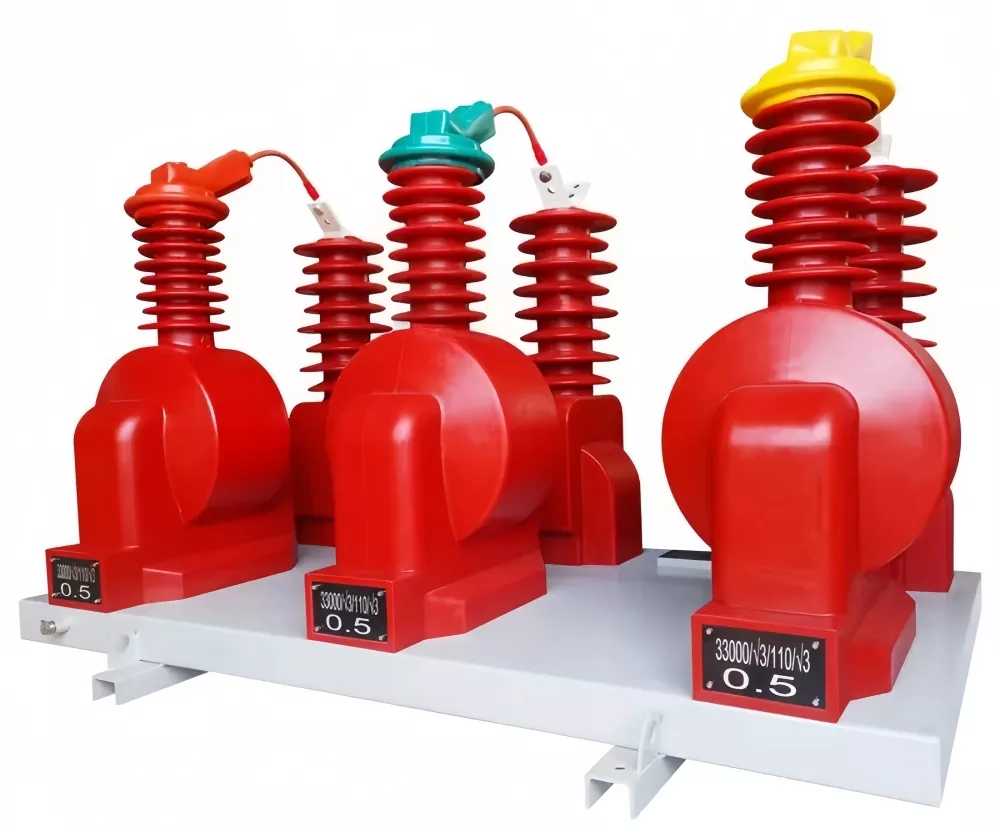

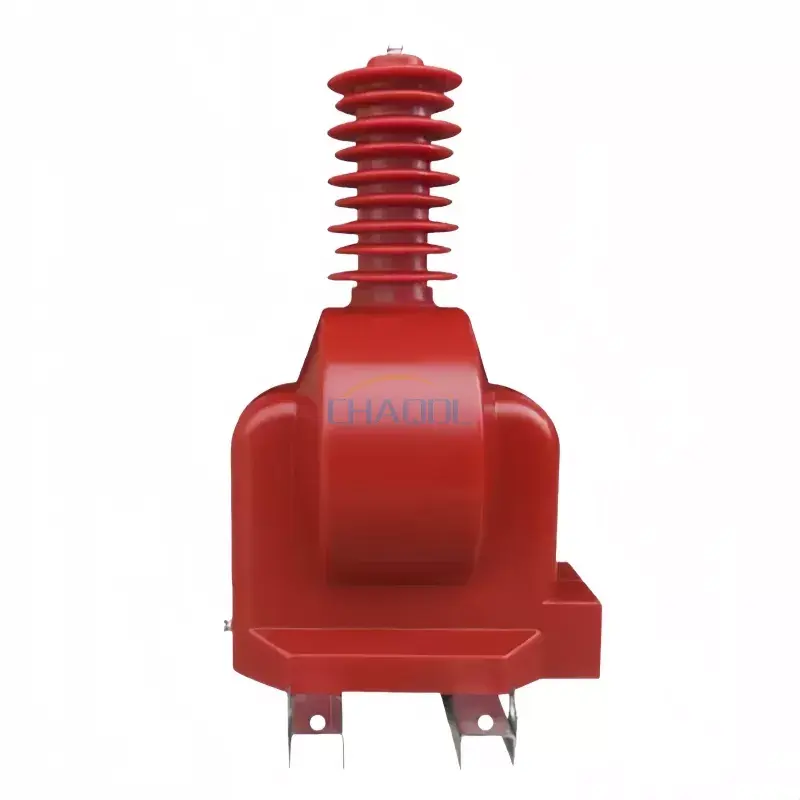

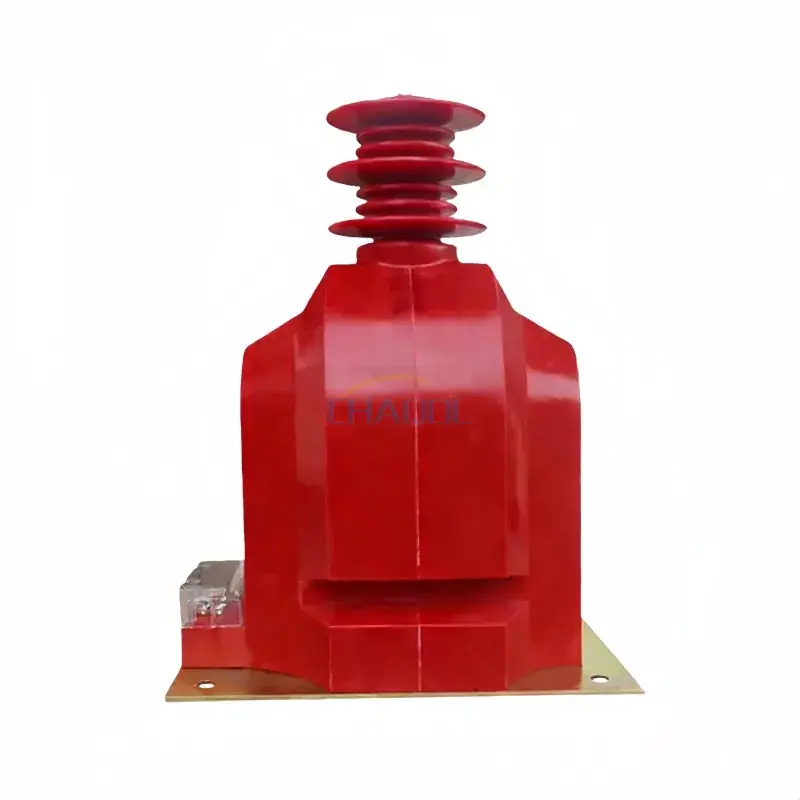

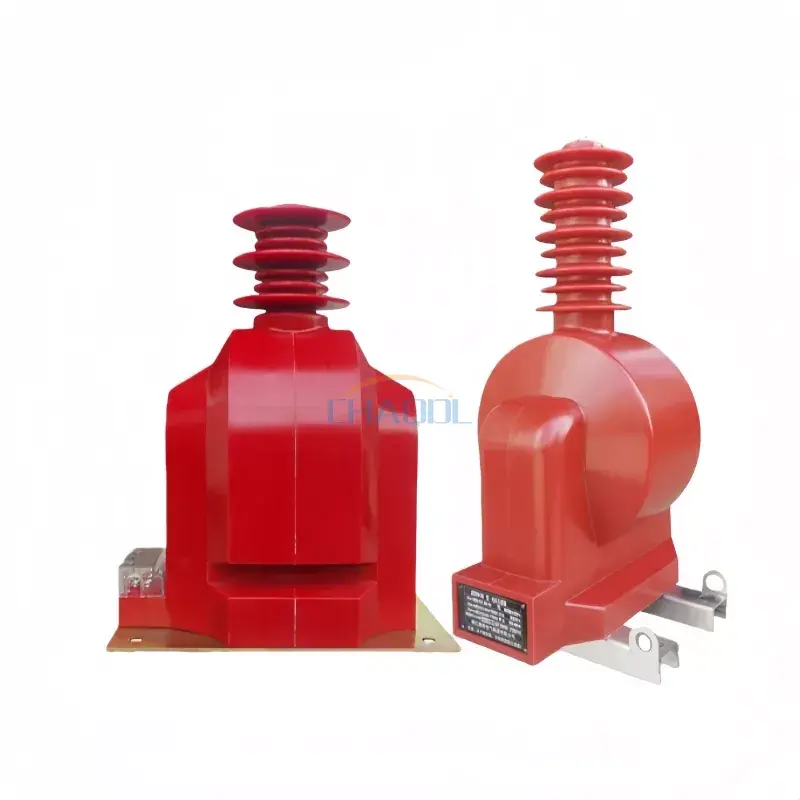

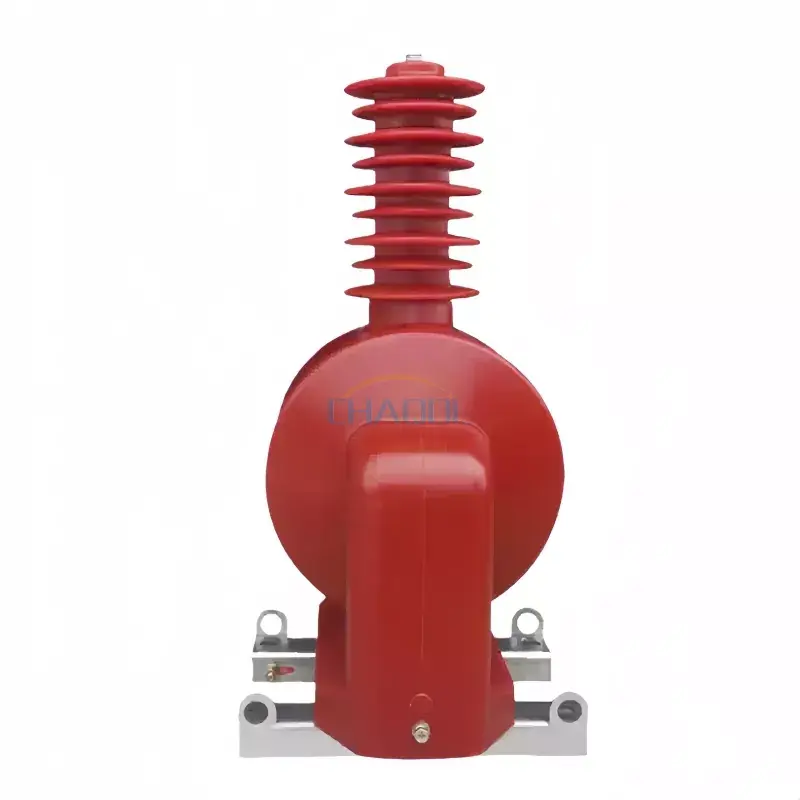

36KV Outdoor Dry Type Voltage Transformer

Model:JDZXW-35

Anqiang Power is a China manufacturer of 36KV Outdoor Dry Type Voltage Transformer. This outdoor voltage transformer is manufactured using arc-resistant, UV-resistant, and aging-resistant outdoor-specific epoxy resin through vacuum casting. Its fully enclosed pillar-type structure is resistant to pollution and moisture. Furthermore, each transformer from Anqiang Electric undergoes two factory tests to ensure product quality, demonstrating their commitment to meticulous product design.

Send Inquiry

Product Description

Anqiang Power presents the JDZX(F) series, a premium 36KV outdoor dry type voltage transformer designed for three-phase AC 50/60Hz power systems. Engineered with advanced epoxy resin vacuum casting technology, this outdoor voltage transformer delivers precise voltage measurement, reliable insulation performance, and long-term operational stability under harsh environmental conditions. Whether you operate a substation, a renewable energy collection system (wind/solar), or an industrial power distribution network, the JDZX series provides accurate voltage signals for metering, protection, and control applications.

Anqiang Power JDZX series 36KV outdoor dry type voltage transformer epoxy resin casting

JDZX vs Traditional Oil-Immersed VT: Why upgrade to dry type?

JDZX Dry Type VT

Epoxy Resin Cast Design

✓ Maintenance-free – No oil leakage risk
✓ Fire & explosion-proof – Safe for outdoor applications
✓ Anti-condensation – Epoxy resin casting withstands humidity
✓ Environmentally friendly – No oil contamination risk

Oil-Immersed VT

Conventional Oil Design

✓ Requires periodic oil testing
✓ Oil leakage & fire risk
✓ Heavier and bulkier
✓ Environmental disposal concerns

📍 Application & Selection Guide: Real-world scenarios

✅ Scenario 1: 35kV/36kV Substation (Metering & Protection)
Use JDZX series voltage transformer on incoming and outgoing feeders. It provides accurate voltage signals for energy metering (0.2/0.5 accuracy class) and protection relays (3P/6P). The outdoor dry type design withstands direct sunlight, rain, and temperature variations.

✅ Scenario 2: Wind/Solar Power Collection System
Renewable energy projects require reliable voltage monitoring at the point of interconnection. The JDZX outdoor dry type VT offers excellent anti-condensation performance, making it ideal for outdoor mounting in coastal or high-humidity environments.

✅ Scenario 3: Industrial Power Distribution (Mining, Cement, Steel)
For industrial facilities with harsh operating conditions, the epoxy resin cast voltage transformer provides maintenance-free operation, reducing downtime and operational costs.

📋 Technical Parameters

Project Name	Parameter value
	JDZX(F)-36	JDZX(F)-40.5
Rated voltage	36/√3 KV	40.5/√3 KV
Highest voltage for equipment	40.5 KV
Rated frequency	50 / 60 HZ
Rated secondary voltage	100/√3 V or 110/√3 V
Residual voltage winding	100/3 V or 110/3 V
Accuracy class	0.2 / 0.5 / 1 / 3P / 6P
Rated voltage factor	1.2 continuous, 1.5 for 30s
Rated insulation level	95/185 KV (LI/AC)
Power frequency withstand voltage	95 KV (dry) / 85 KV (wet)
Lightning impulse withstand voltage	185 KV (peak)
Creepage distance	≥ 900 mm (Class II / III pollution)
Protection class / enclosure rating	IP54
Ambient temperature range	-40°C to +55°C
Insulation material	Epoxy resin (vacuum casting)
Standard compliance	GB/T 20840, IEC 61869

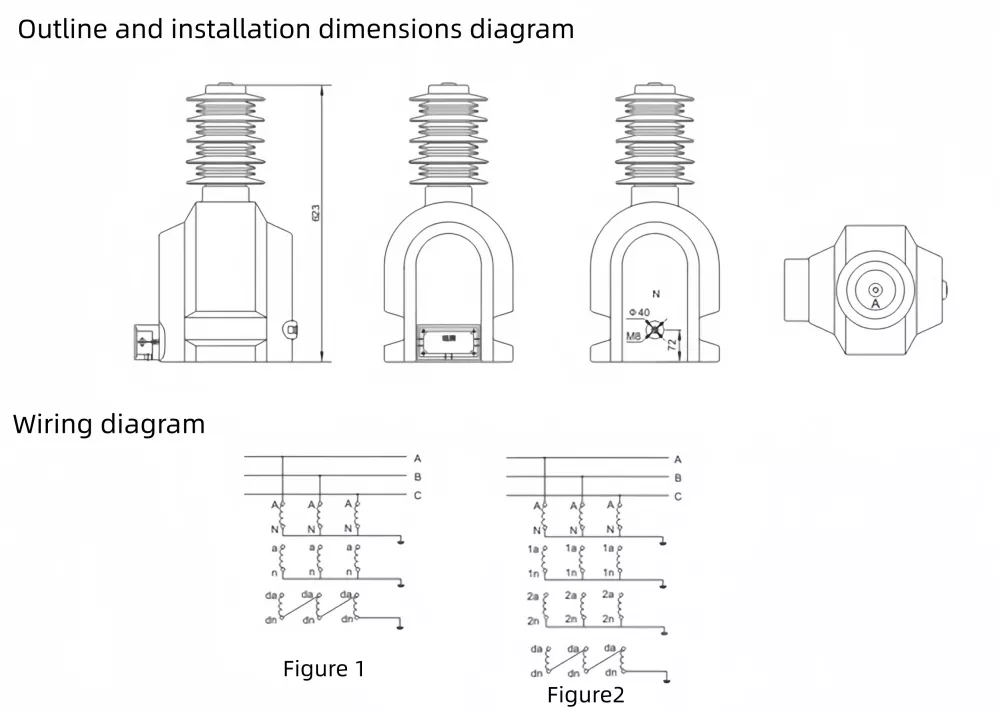

📐 Product Dimensions & Installation Drawing

36KV outdoor dry type voltage transformer dimensions drawing JDZX series

JDZX Series Mechanical Layout Components:
1. Epoxy resin casting body
2. Primary terminal (H1/H2)
3. Secondary terminal box (IP54)
4. Grounding terminal
5. Mounting bracket
6. Creepage distance extension fins
7. Nameplate
8. Lifting lugs

The JDZX series features a compact, weather-resistant design that mounts directly on outdoor poles or substation structures. The IP54 rated secondary terminal box provides protection against dust and water ingress, ensuring reliable operation in outdoor environments. The epoxy resin vacuum casting process eliminates voids and ensures superior insulation performance.

🏭 Why Anqiang Power? – Your trusted partner for voltage transformers

Factory direct – No middleman, competitive pricing and short lead time (15-25 days).
Type tested – GB/T 20840, IEC 61869 compliant, fully certified.
Customization ready – Accuracy class, secondary voltage ratings, special terminal box configurations, OEM branding.
Global references – Supplied to Southeast Asia, Middle East, Africa, South America.

📌 Real project references:

✅ Philippines – 150+ units of 36kV outdoor dry type VTs supplied to NGCP for substation metering upgrade project (2023–2024).

✅ Pakistan – 80 sets of JDZX series voltage transformers deployed in solar power plant collection substations (50MW project, Bahawalpur region).

Frequently Asked Questions

Q1: What is the difference between dry type and oil-immersed voltage transformers?
A: Dry type VTs use epoxy resin casting insulation – maintenance-free, fire-proof, and environmentally friendly. Oil-immersed VTs require periodic oil testing and pose leakage/fire risks. For outdoor 36kV applications, dry type is increasingly preferred.

Q2: What accuracy classes are available for the JDZX series?
A: Our 36kV outdoor dry type VTs offer accuracy class 0.2 (precision metering), 0.5 (general metering), 1 (industrial), 3P/6P (protection). We can customize based on your specific requirements.

Q3: What is the creepage distance of this voltage transformer?
A: The standard design provides ≥900mm creepage distance, suitable for Class II/III pollution environments. For high-altitude or heavy pollution areas, we can extend the creepage distance upon request.

Q4: Is this VT suitable for outdoor use in harsh weather conditions?
A: Yes. The JDZX series features IP54 rated secondary terminal box and epoxy resin casting that withstands direct sunlight, rain, condensation, and temperature variations from -40°C to +55°C.

Q5: Do you provide OEM/ODM service for voltage transformers?
A: Absolutely. We offer custom secondary voltage ratios, accuracy class configurations, special terminal boxes, and branded nameplates. Pre-production samples are available with a lead time of 7-10 days.
