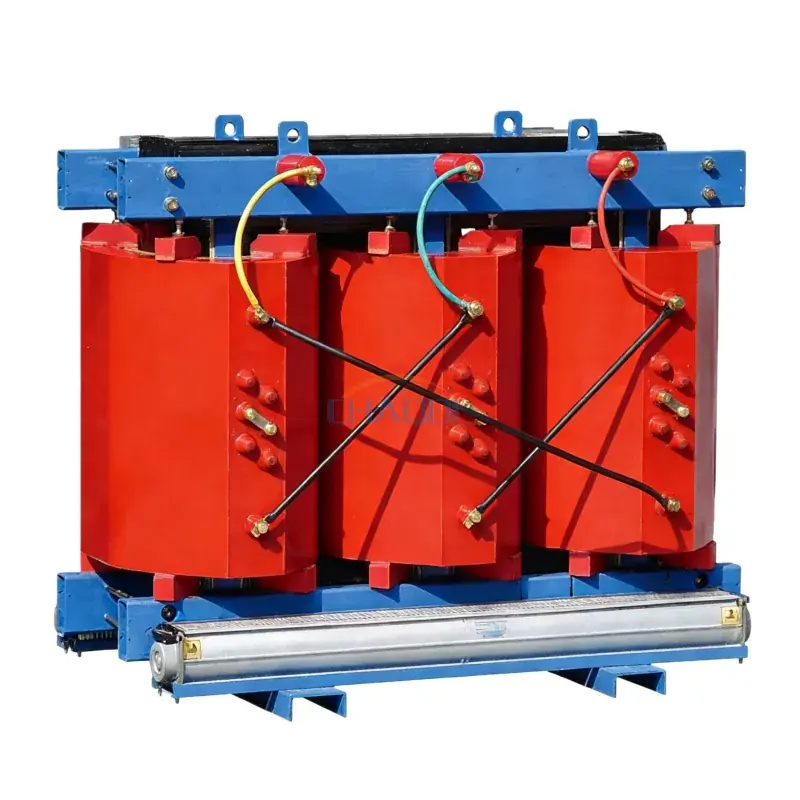

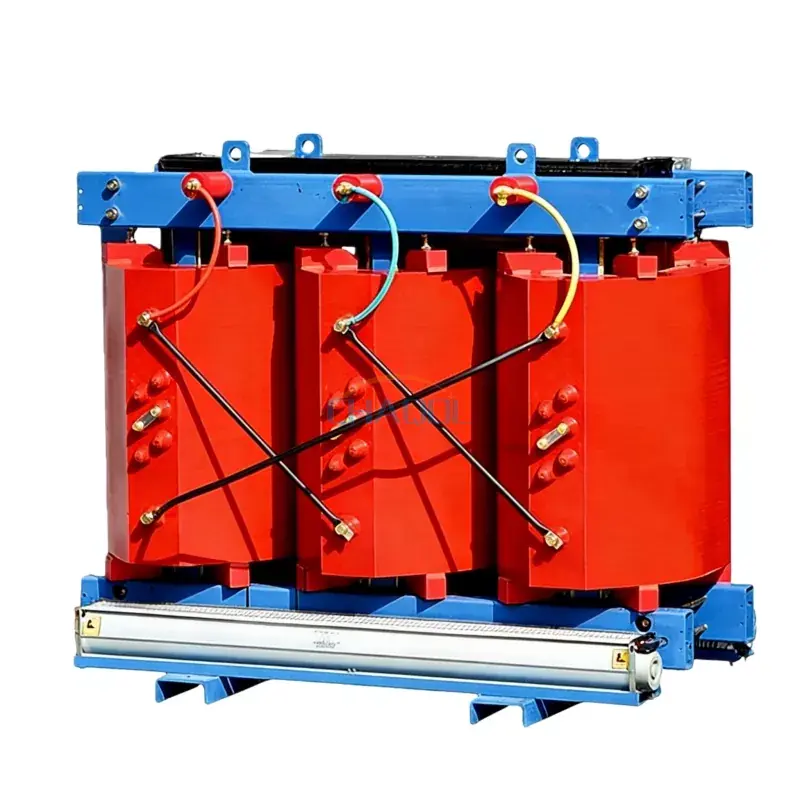

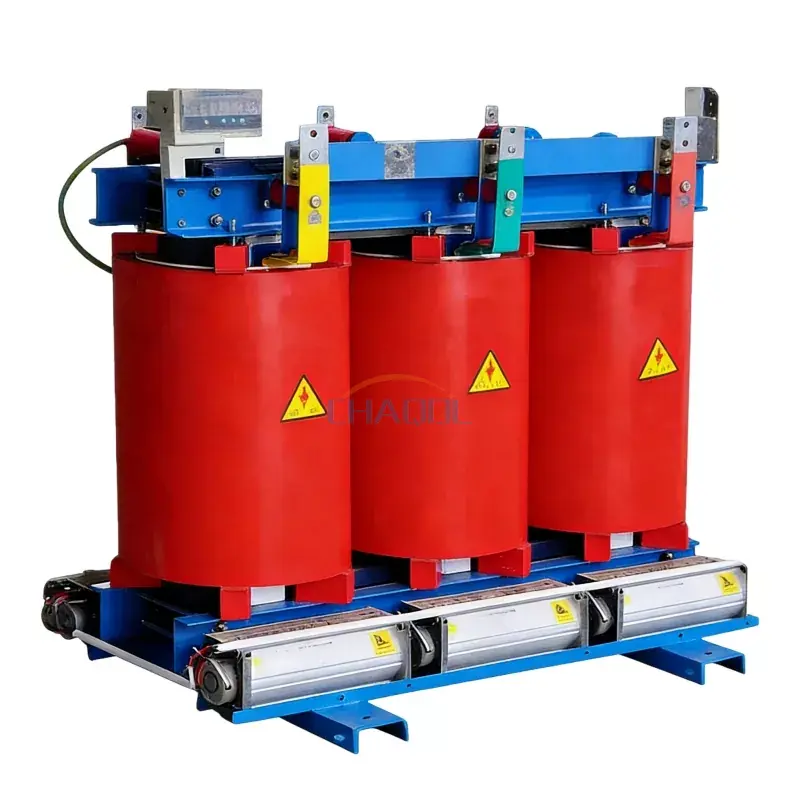

Anqiang Power's 10KV amorphous alloy dry type transformer, model number SBH15-H-(30-2500)/10, is a transformer in which the core and windings are not immersed in insulating oil. 10KV Amorphous Alloy Dry Type Transformer features two cooling methods: natural air cooling and forced air cooling. With natural air cooling, the transformer can operate continuously at its rated capacity. With forced air cooling, the transformer's output capacity can be increased by 50%.
|

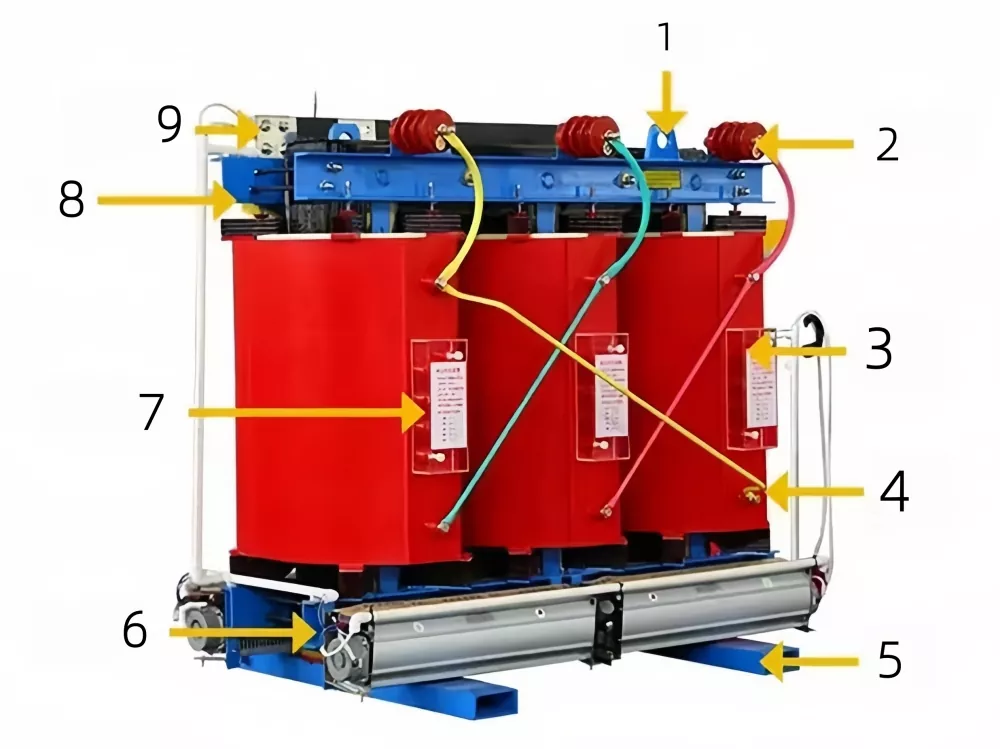

Serial number |
Name |
|
1 |
Rings (gymnastics) |
|
2 |
High-voltage terminal |
|
3 |
High-voltage tap connector |
|
4 |
High-voltage connecting rod |
|
5 |
Base |
|
6 |
Grounding screw |
|
7 |
High-voltage connector |
|
8 |
Clamping parts |
|
9 |
Low-voltage output copper busbar |
|
Rated capacity (kVA) |
Rated voltage (kV) |
No-load current (%) |
Loss (W) |
Impedance voltage (%) |
Dimensions (mm) Length * Width * Height |
||
|
High pressure |
Low pressure |
No load |
Load |
Load |
|||
|
30 |
20±2*2.5
|
0.4 |
1.7 |
40 |
600 |
5.5 |
1000*780*1060 |
|
50 |
1.3 |
55 |
960 |
1030*850*1110 |
|||
|
80 |
1.0 |
75 |
1375 |
1060*900*1115 |
|||
|
100 |
1.0 |
90 |
1650 |
1110*910*1170 |
|||
|
160 |
0.7 |
120 |
2420 |
1220*910*1235 |
|||
|
200 |
0.7 |
145 |
2860 |
1290*920*1275 |
|||
|
250 |
0.7 |
165 |
3355 |
1360*920*1310 |
|||
|
315 |
0.5 |
200 |
4015 |
1380*860*1415 |
|||
|
400 |
0.5 |
240 |
4730 |
1510*900*1490 |
|||
|
500 |
0.5 |
290 |
5665 |
1640*900*1545 |
|||
|
630 |
0.3 |
370 |
6820 |
6 |
1740*1120*1550 |
||
|
800 |
0.3 |
450 |
8250 |
2070*1230*1595 |
|||
|
1000 |
0.3 |
530 |
11330 |
2260*1350*1635 |
|||
|
1250 |
0.2 |
620 |
13200 |
2360*1350*1695 |
|||
|
1600 |
0.2 |
750 |
15950 |
2530*1390*1775 |
|||
|
2000 |
0.2 |
900 |
19410 |
2750*1450*1900 |
|||
|
2500 |
0.2 |
1080 |
22220 |
2900*1510*2000 |
|||
