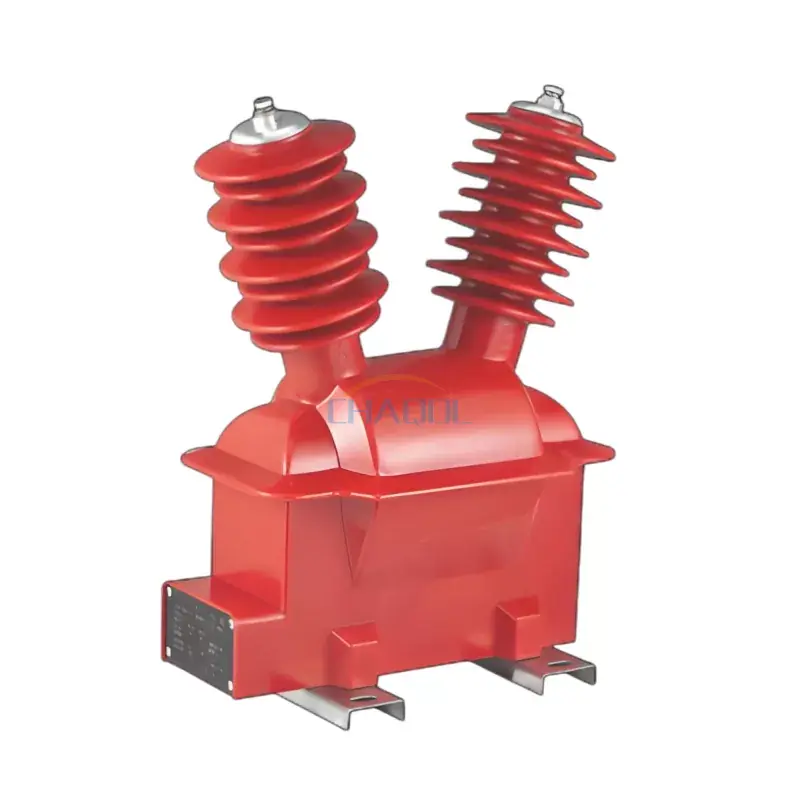

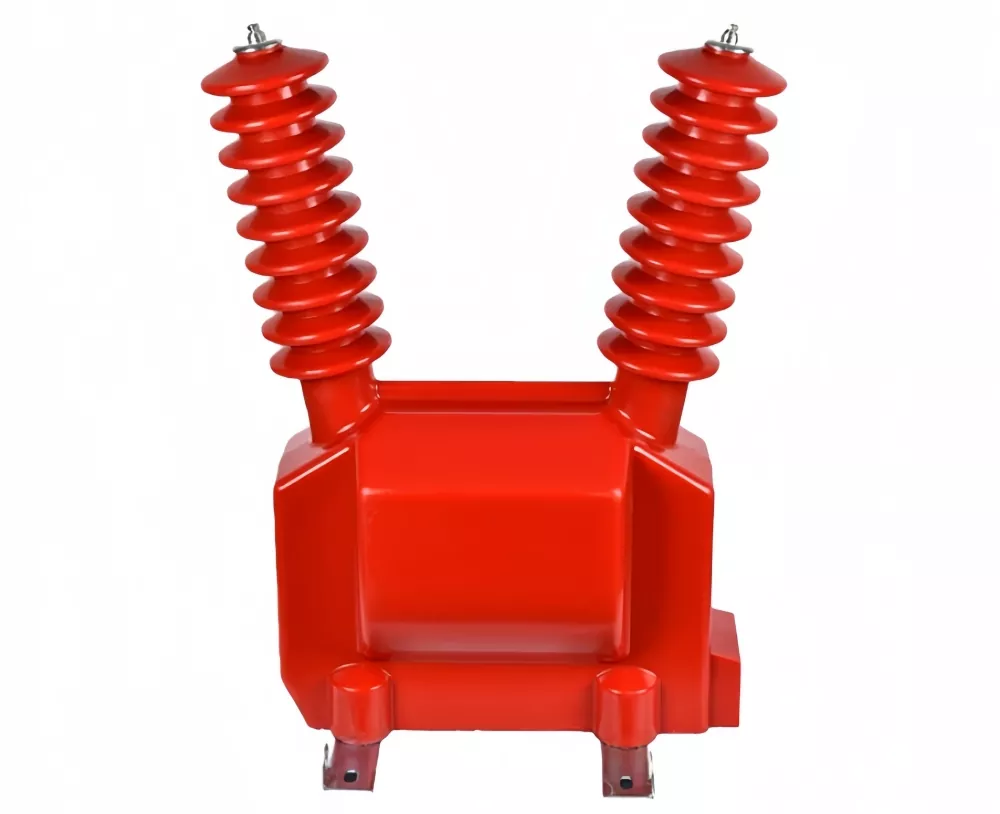

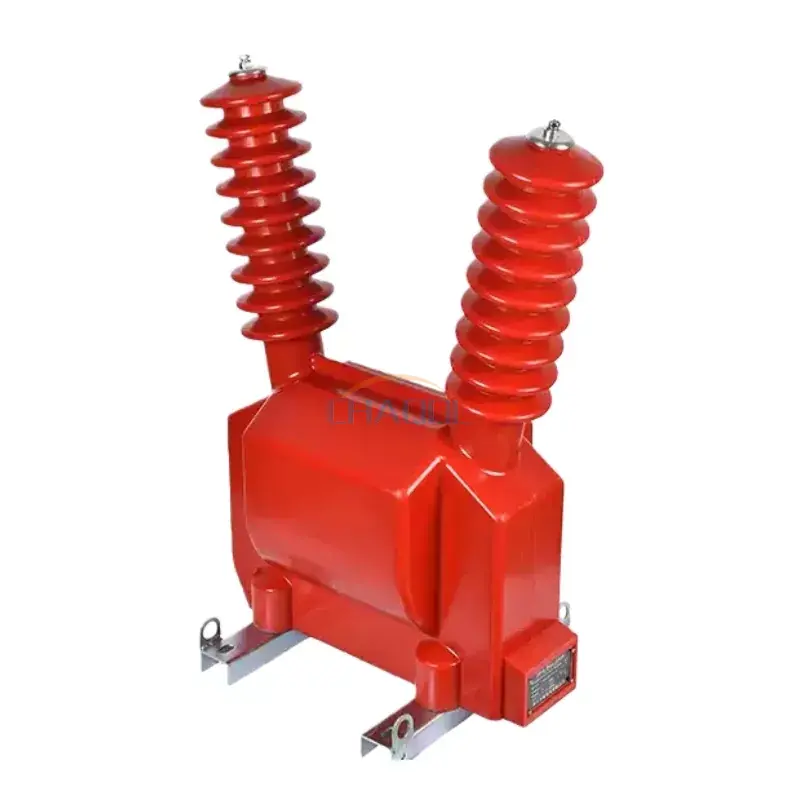

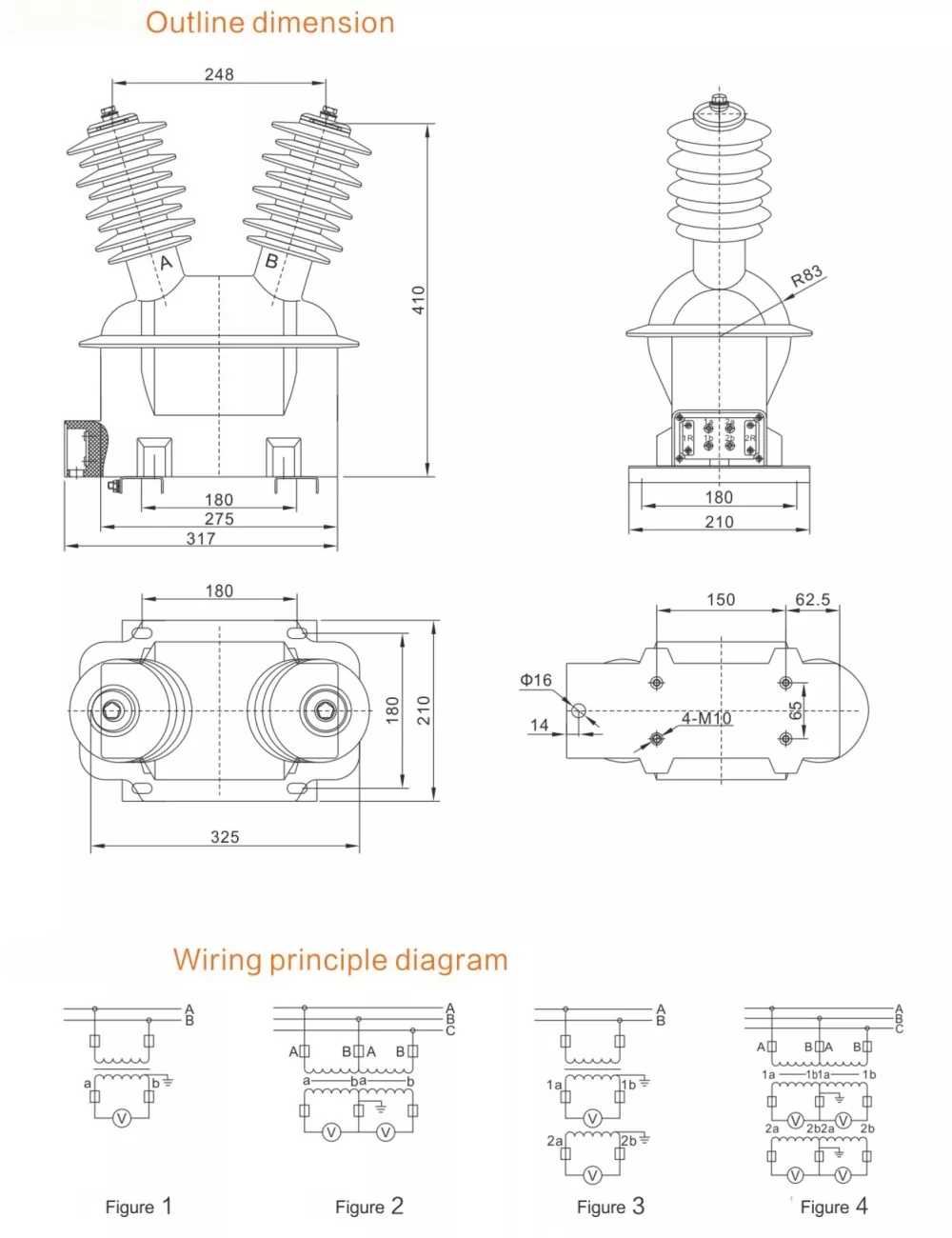

Anqiang Power's 24KV outdoor voltage transformers are high-performance outdoor devices. Available in models JDZW-6, 10, 17.5, and 24, they are designed to provide standard voltage for voltmeters, power meters, ground relays, and ground leakage detectors. Anqiang has successfully applied JDZW-type voltage transformers in numerous projects, demonstrating their ability to meet the needs of various industries and adapt to different environments. Anqiang Electric can also customize the transformers according to the user's technical specifications.
Using the technical parameters of rated voltage 6KV and 10KV as a reference.
|
Product Model |
JDZW-6R |
JDZW-10R |
||||
|
Rated voltage ratio (A) |
6000/100 |
10000/100 |
10000/220 |
1000/100/100 |
10000/100/220 |
|
|
Accuracy class and rated secondary output |
0.2 |
30 |
30 |
30 |
/ |
/ |
|
0.5 |
80 |
80 |
80 |
/ |
/ |
|
|
1 |
200 |
200 |
200 |
/ |
/ |
|
|
3 |
240 |
240 |
240 |
/ |
/ |
|
|
0.2/0.2 0.2/0.2 |
/ |
/ |
/ |
20/22 20/30 |
0.2/3-30/500 0.5/3-80/500 |
|
|
0.5/0.5 |
/ |
/ |
/ |
25/25 |
||
|
6P |
/ |
/ |
/ |
/ |
/ |
|
|
Maximum output (VA) |
500 |
500 |
500 |
400/400 |
300/500 |
|
|
Rated insulation level (VA) |
7.2/32/60 |
12/42/75 |
||||
This 24kV Outdoor Voltage Transformer is widely applied in power transmission and distribution systems, including urban substations, industrial plants, renewable energy stations, and railway electrification networks. It is especially suitable for outdoor switchgear where reliable voltage sampling is required for protection and energy metering systems.
Due to its stable insulation structure and strong environmental adaptability, it is frequently selected for grid upgrade projects and smart grid infrastructure construction.
●High insulation strength for outdoor operation
●Stable accuracy across wide load conditions
●Fully sealed moisture-proof design
●Long service life with minimal maintenance
●Compatible with multiple secondary configurations
The 24kV Outdoor Voltage Transformer ensures consistent performance in both normal and fault conditions, making it a dependable component in modern electrical networks.
Proper grounding is required during installation to ensure safety and measurement accuracy. The transformer should be mounted vertically on a stable structure, and secondary wiring must be checked for correct polarity before energization.
Regular inspection is recommended for terminals and sealing parts to ensure long-term reliability in outdoor environments.
Q1: What is the main function of this transformer?
A: It steps down high voltage to measurable levels for metering and protection systems.
Q2: Can it be used in harsh outdoor environments?
A: Yes, it is designed with sealed insulation and anti-corrosion materials for outdoor use.
Q3: What systems is it compatible with?
A: It is suitable for substations, RMU systems, and overhead distribution networks.
Q4: What is the typical service life?
A: Under normal operating conditions, it can operate reliably for more than 20 years.
Q5: Does it require frequent maintenance?
A: No frequent maintenance is required; only periodic inspection is recommended.
Q6: Can the secondary output be customized?
A: Yes, secondary voltage and burden can be customized according to system requirements.
Final note: The 24kV Outdoor Voltage Transformer is built for stable grid operation, ensuring accurate voltage measurement and reliable protection performance in outdoor power systems.
