40.5KV Outdoor Disconnecting Switch

Model:GW5-40.5

Anqiang Power's independently developed 40.5KV outdoor disconnecting switch is a double-column, horizontal break, center-opening type, and can be equipped with grounding switches on one or both sides. It is an outdoor high-voltage device suitable for AC 50Hz applications, with rated voltage levels of 40.5KV, 72.5KV, and 126KV. We can customize it according to drawings or customer requirements.

Send Inquiry

Product Description

This 40.5KV outdoor disconnecting switch is a double-column V-shaped horizontal opening type. Each single pole consists of a base, support insulator, terminal block, and contacts. This disconnect switch is available in three types: ungrounded, single-grounded, and double-grounded. It features a mechanical interlock between the main shaft and the grounding blade, and includes an auxiliary switch. The switch can be operated manually or electrically.

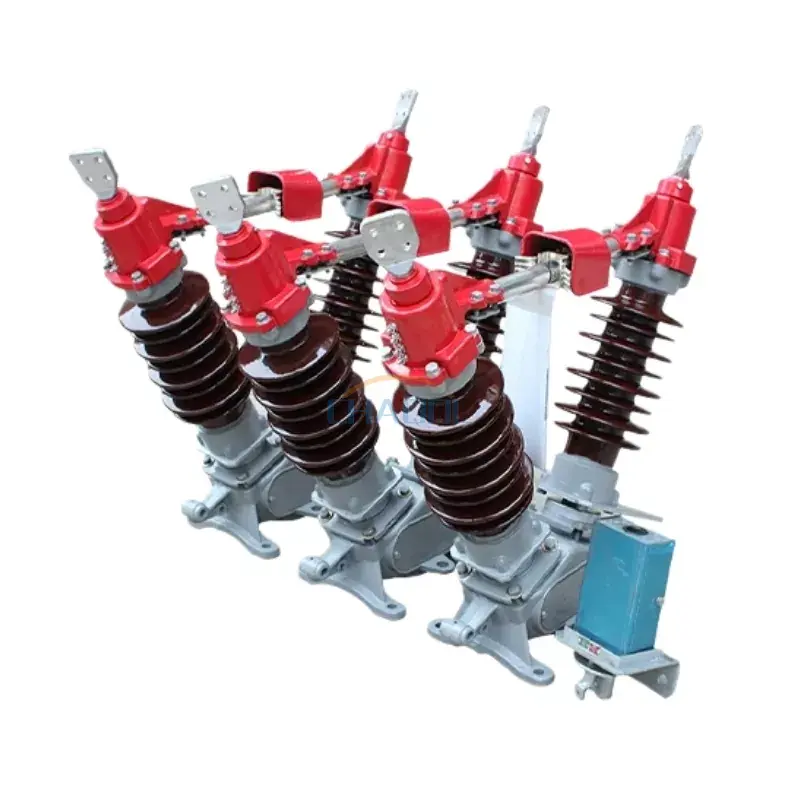

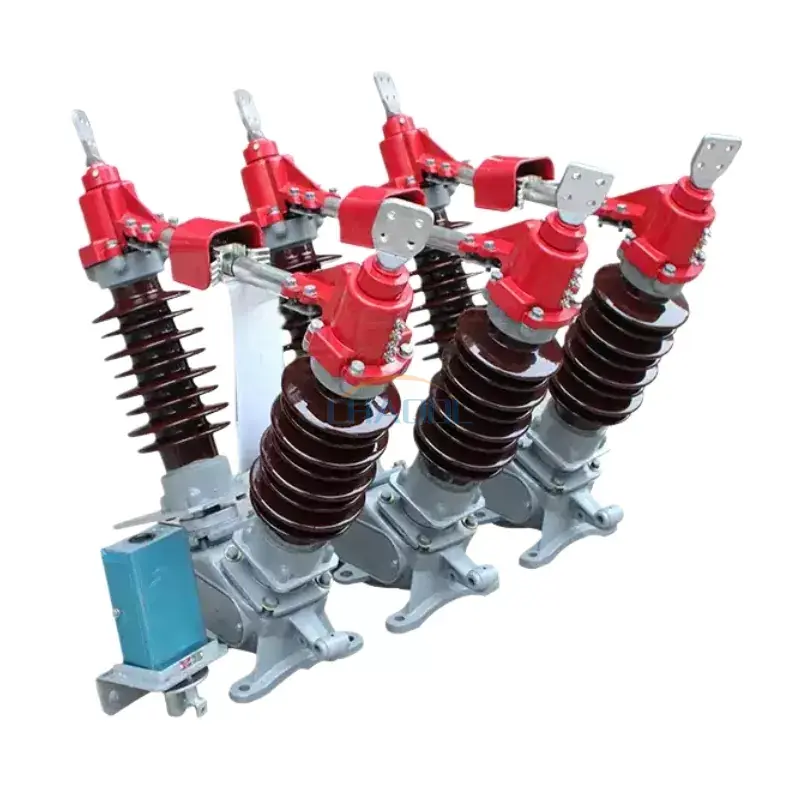

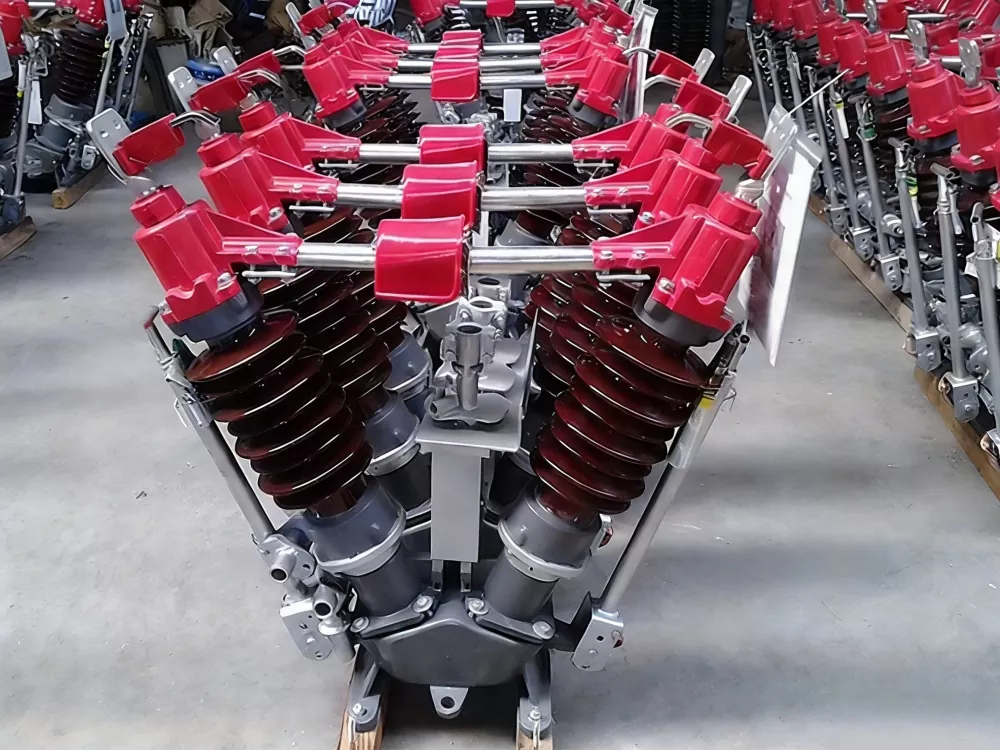

Actual product photos

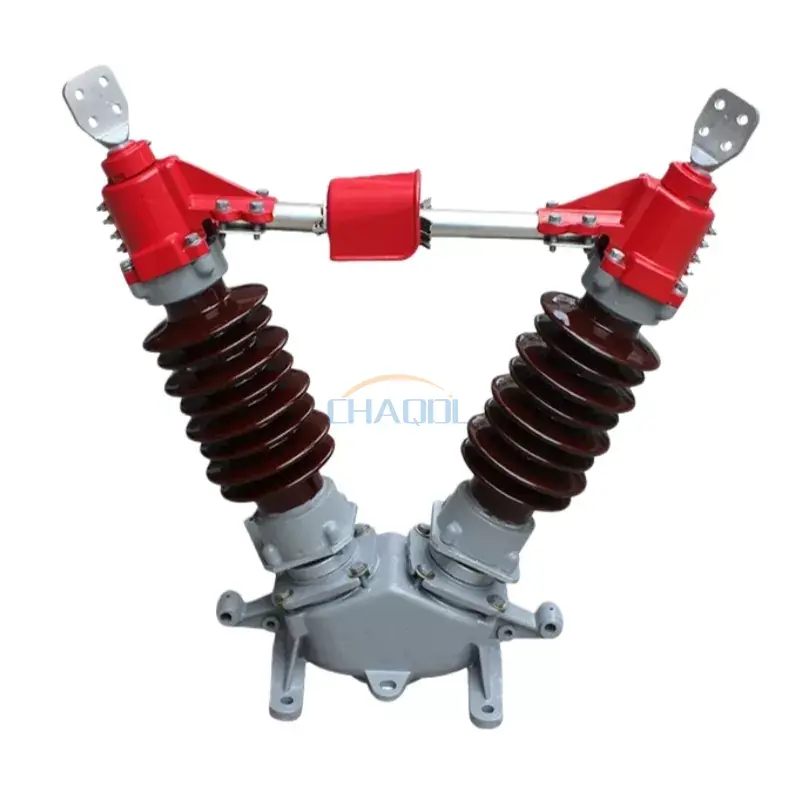

40.5KV Outdoor Disconnecting Switch

Technical Parameters

Project Name			Parameter value
Rated voltage			40.5KV	72.5KV			126KV
Rated insulation level	1-minute power frequency withstand voltage		95/115 KV	140/160 KV			230/245KV
	Lightning impulse withstand voltage		185/215 KV	325/375 KV			550/630 KV
Rated frequency			50 Hz
Rated current			630/1250A	1600A			2000A
Rated short-circuit duration			4/2s
Rated terminal mechanical load	Horizontal longitudinal load		750N	1000N
	Horizontal lateral load		500N	750N
	Vertical force		750N	1000N
Creepage distance			1013/1256mm	1813/2248mm
Mechanical life			2000 times
Manually operated mechanism			CS17，CS17G
Motor-driven operating mechanism		Model	CJ5/CJ6
		Motor voltage	AC220/380，DC220
		Control circuit voltage	AC220，DC220
		Opening time (of the circuit breaker)	6±1s
Product weight		Not grounded	360kg		500kg	800kg
		Single grounding	390kg		560kg	900kg
		Double grounding	430kg		620kg	1000kg

Product dimensions diagram

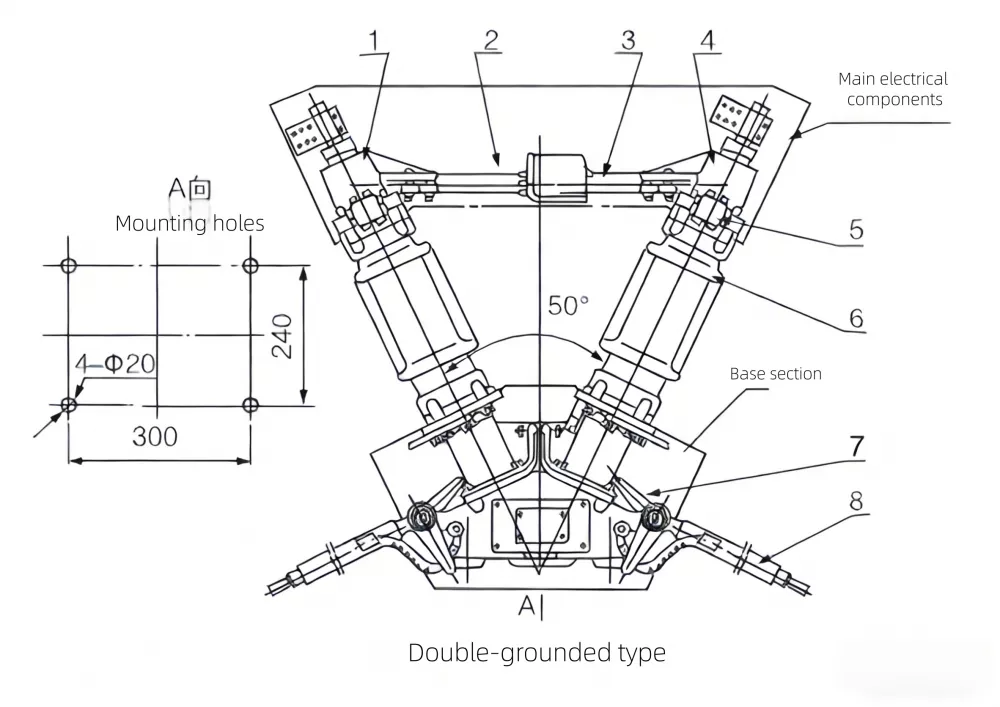

GW5-40.5KV Outdoor Disconnecting Switch Dimensions Diagram

40.5KV Outdoor Disconnecting Switch

1.Terminal block

2. Main contact

3. Main contact finger

4. Terminal block

5. Grounding contact finger

6. Post insulator

7. Limit plate

8. Grounding switch

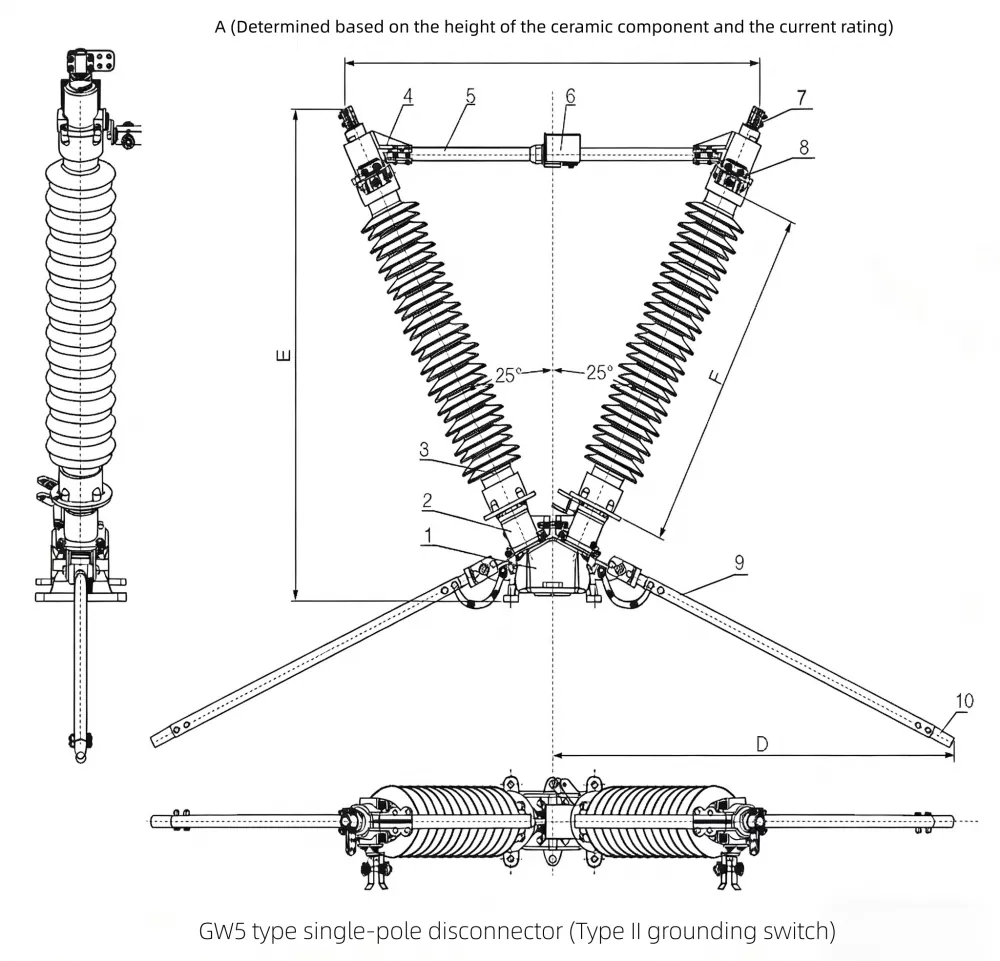

GW5-126 Outdoor Disconnect Switch Dimensions Diagram

40.5KV Outdoor Disconnecting Switch

1. Base

2. Support

3. Insulating post

4. Terminal block

5. Round shaft conductive rod

6. Square shaft conductive rod

7. Terminal clamp

8. Grounding switch stationary contact

9. Grounding switch aluminum tube

10. Grounding switch contact
