12kV Indoor SF6 Load Break Switch

The 12kV Indoor SF6 Load Break Switch (model FLN36-12D) is a medium-voltage switching device designed for compact indoor power distribution systems. It integrates load switching and grounding functions within a sealed SF6 gas insulation chamber, ensuring stable dielectric performance and reliable arc extinction under frequent operation conditions.

It is commonly used in ring main units (RMU), metal-enclosed switchgear, gas-insulated switchgear (GIS), and prefabricated substations. It plays a key role in isolating faulty sections, ensuring safe maintenance, and improving overall distribution network reliability.

Product Overview

Manufactured for 12kV class distribution systems, this switch adopts a three-position structure (“close – open – earth”), allowing safe and visible isolation. The sealed SF6 tank design reduces environmental influence and ensures long-term insulation stability even in high-humidity or dusty indoor environments.

In practical applications, the 12kV Indoor SF6 Load Break Switch is widely deployed in industrial substations, utility distribution rooms, and compact electrical panels where space optimization and operational safety are critical requirements.

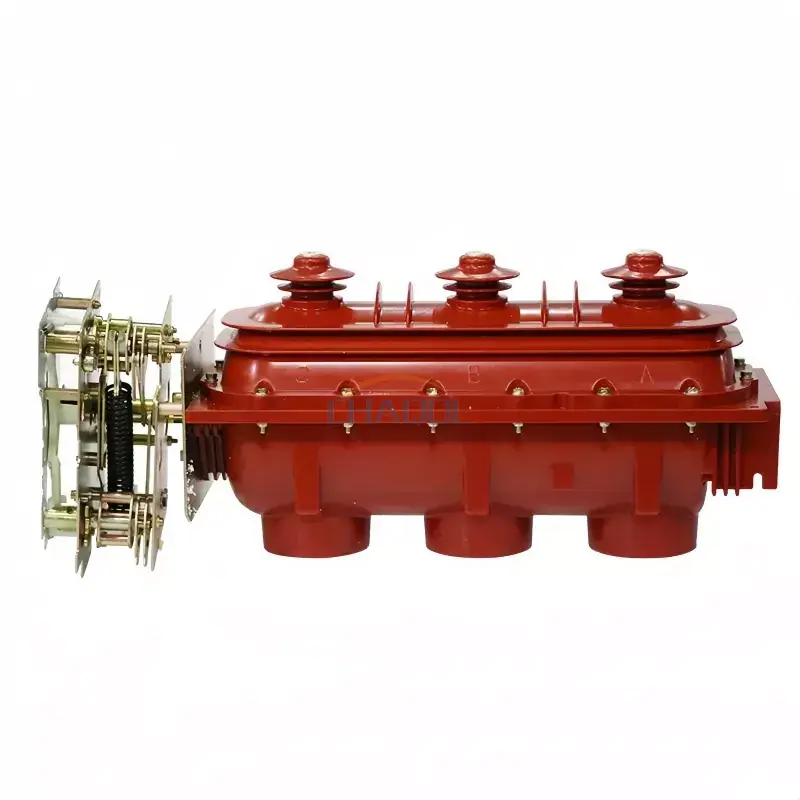

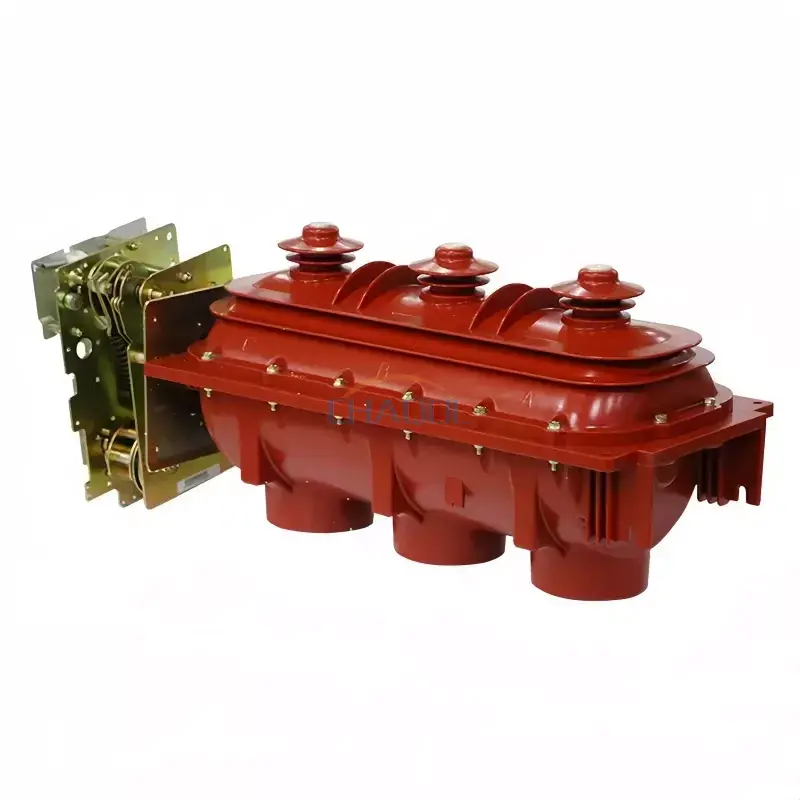

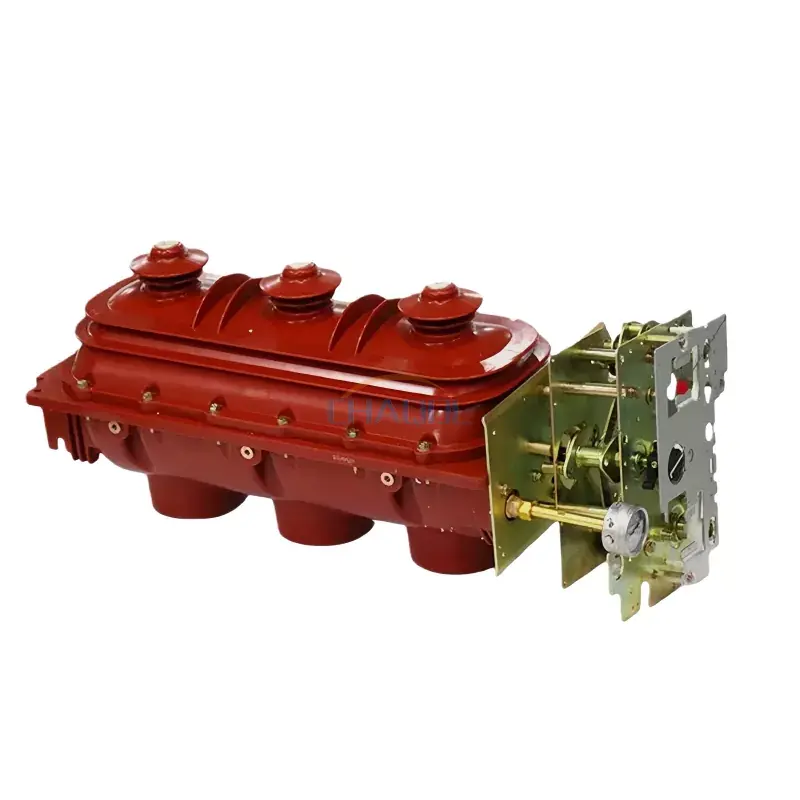

Actual product photos

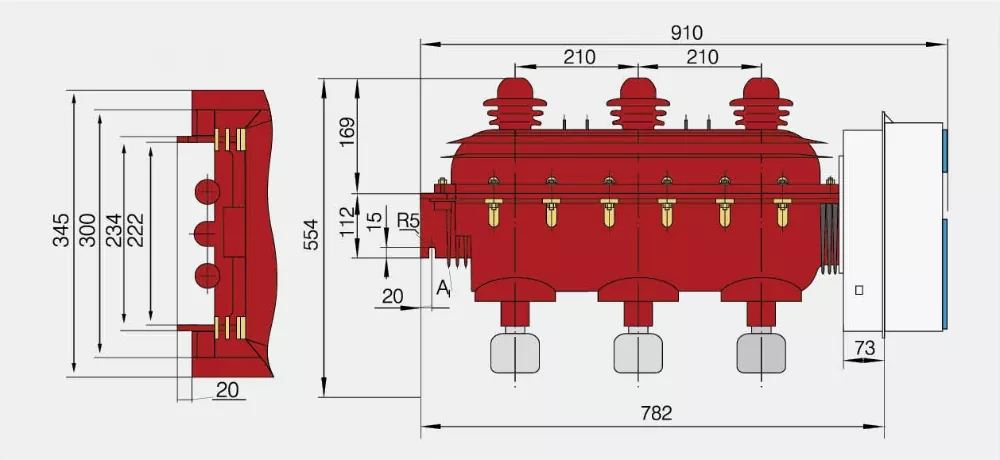

Product dimensions diagram

Technical Advantages

One of the core advantages of the 12kV Indoor SF6 Load Break Switch is its fully sealed gas-insulated structure, which minimizes oxidation and contamination risks on conductive components. This significantly improves service life and reduces maintenance frequency.

The switching system is optimized for high dielectric strength, enabling safe interruption of load currents and short-circuit protection coordination when combined with high-voltage fuses or protective relays.

In addition, it offers stable mechanical performance with consistent operation torque, making it suitable for repeated switching in distribution automation environments.

Technical Parameters

Fuse Technical Parameters

Application Scenarios

The 12kV Indoor SF6 Load Break Switch is widely used in secondary distribution networks, industrial power systems, and compact substation solutions. It is particularly suitable for applications requiring frequent switching operations, high safety isolation, and compact installation space.

Typical use cases include ring main units, prefabricated substations, urban distribution centers, and renewable energy power collection systems.

FAQ

Q1: What is the main function?
A: It is used for switching load current, isolating faulty sections, and ensuring safe maintenance in 12kV medium-voltage indoor distribution systems. The sealed SF6 structure provides stable arc extinction and long service life.

Q2: Where is the 12kV Indoor SF6 Load Break Switch typically used?
A: It is widely applied in ring main units (RMU), gas-insulated switchgear, prefabricated substations, and industrial distribution systems where compact design and high reliability are required.

Q3: What are the advantages of SF6 insulation technology?
A: SF6 gas offers excellent dielectric strength and arc-quenching capability, which improves switching safety, reduces maintenance needs, and enhances operational stability in medium-voltage systems.

Q4: Can it work with protection fuses?
A: Yes, it is commonly combined with high-voltage fuses to provide short-circuit protection and improve system coordination in distribution networks.

Q5: Is this equipment suitable for frequent switching operations?
A: Yes, it is designed for frequent operation scenarios in industrial and utility power systems, ensuring stable mechanical and electrical performance over long-term use.
