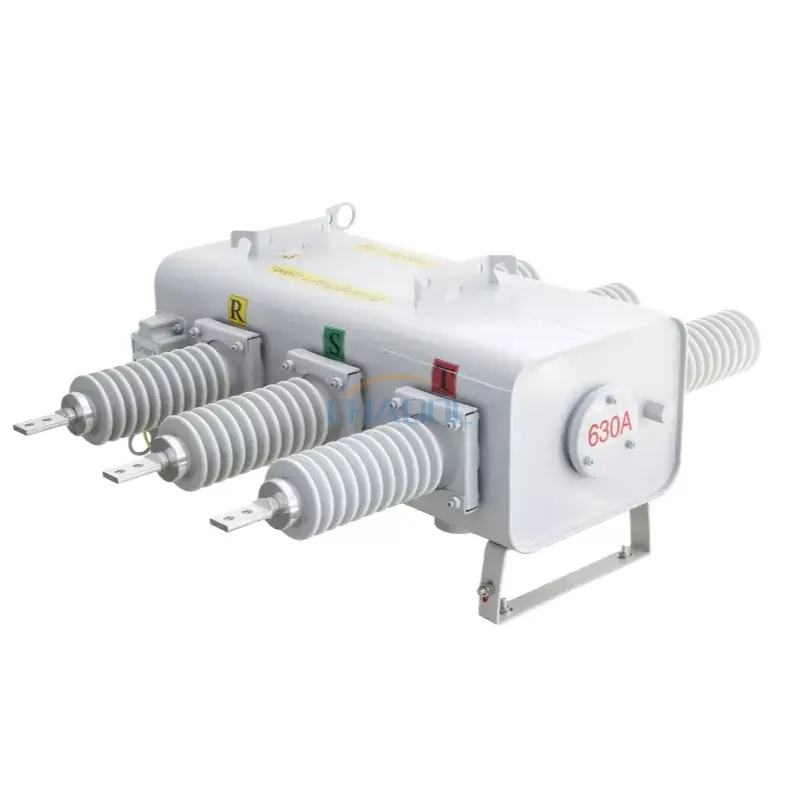

24kV Pole Mounted SF6 Load Break Switch

The 24kV Pole Mounted SF6 Load Break Switch (model FLW34-24/630-20) is a pole-top switching device designed for modern medium-voltage distribution networks. It is widely applied in overhead line systems to switch load current, isolate fault sections, and improve grid reliability in urban and rural power distribution networks. With its SF6 insulated interruption chamber, the equipment ensures stable arc extinction performance under frequent switching conditions.

Product Type

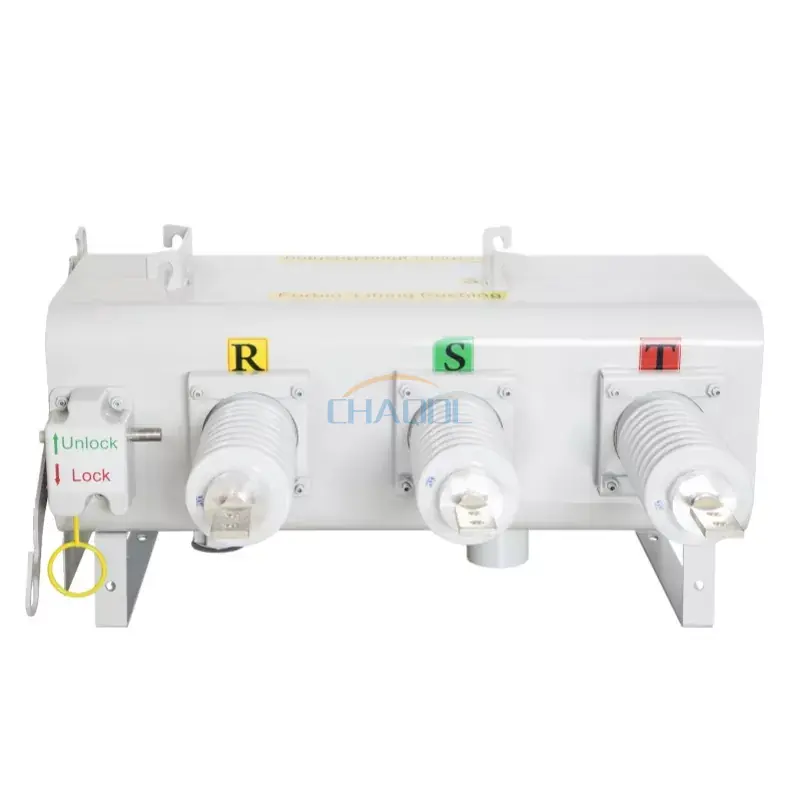

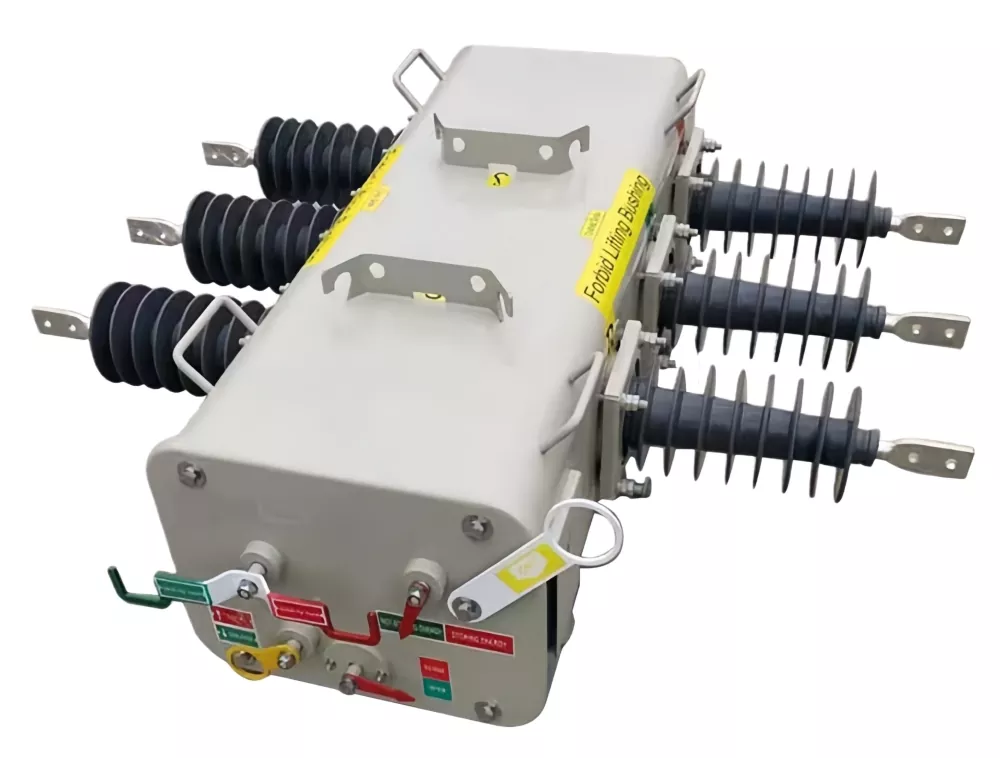

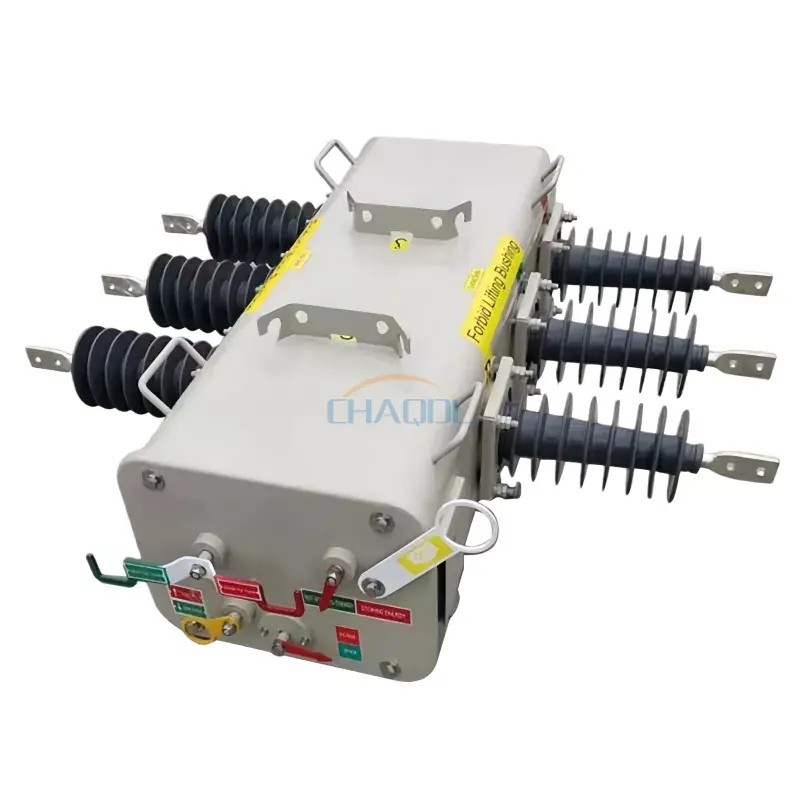

1.Ceramic bushing, molded cable outlet.

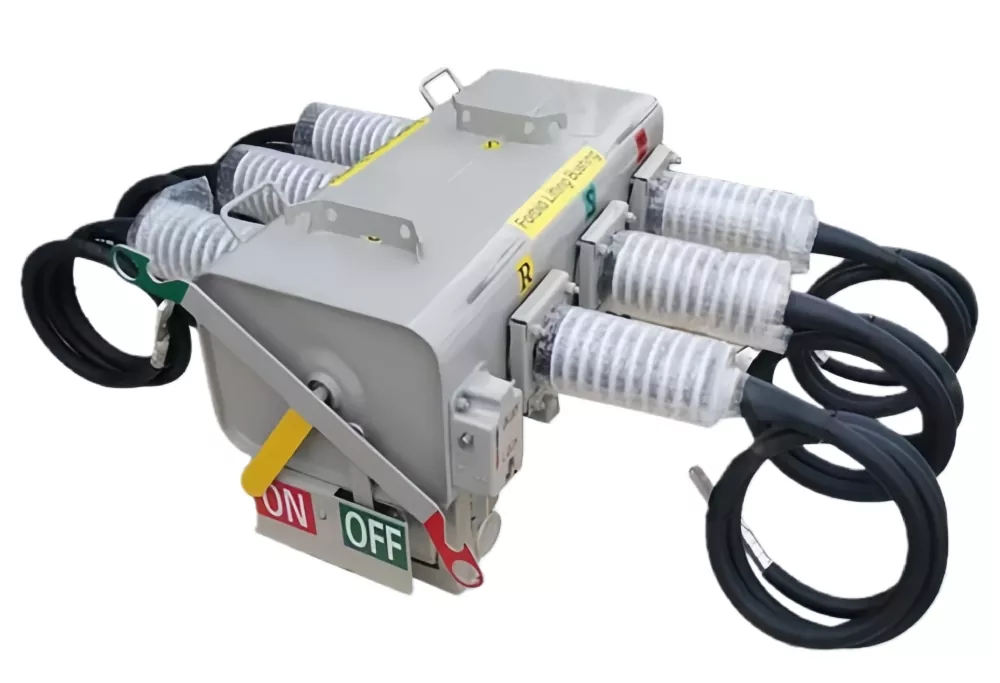

2. Integrated rubber sleeve, with wiring terminals for output.

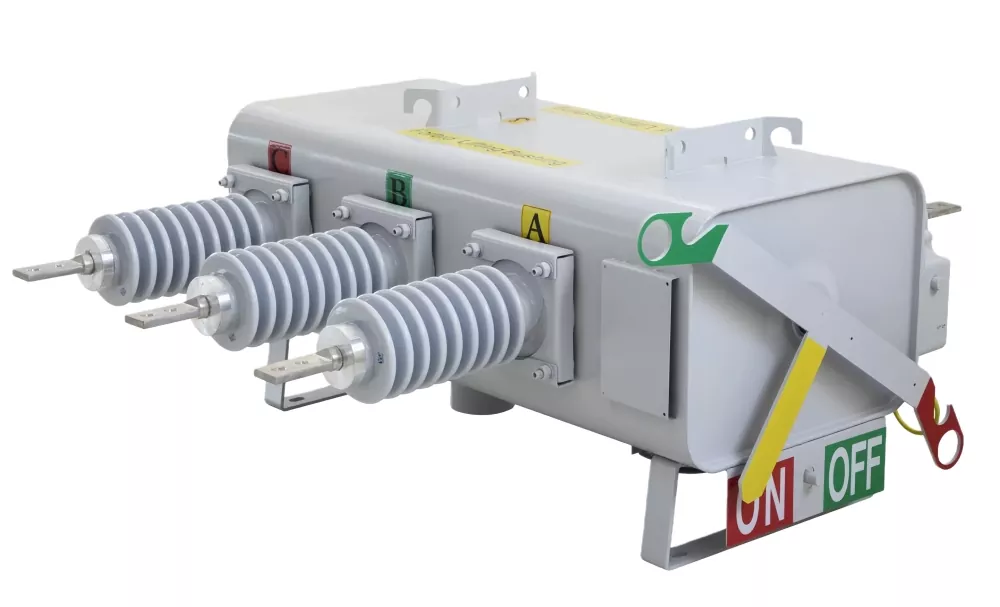

3.Ceramic sleeve, wiring terminals for output connection.

Technical Parameters

Application Scope

It is suitable for distribution automation systems, ring main overhead lines, and feeder segmentation in substations and industrial power networks. It supports manual, electric, and remote control modes, making it adaptable for smart grid upgrades and unattended substations.

In practical deployment, the 24kV Pole Mounted SF6 Load Break Switch is commonly installed on concrete or steel utility poles, enabling fast fault isolation and reducing outage duration in overhead distribution systems. Its compact structure also reduces land usage and installation complexity.

Structural Design & Operating Principle

The equipment uses SF6 gas as the insulating and arc-quenching medium. During switching operations, the gas flow inside the sealed chamber rapidly extinguishes the arc, ensuring reliable interruption of load and short-circuit currents.

The controller system is housed in a sealed stainless steel enclosure with high protection rating, allowing stable operation under humidity, dust, and temperature variations. Communication interfaces support remote monitoring, which enables integration into distribution automation platforms.

Another key feature of the 24kV Pole Mounted SF6 Load Break Switch is its modular pole-mounted design, which simplifies installation and minimizes maintenance requirements throughout the product lifecycle.

Technical Advantages

Compared with conventional overhead switching devices, this equipment offers improved insulation performance, longer service life, and reduced operational losses. The sealed SF6 structure eliminates external contamination risks and ensures consistent dielectric strength over long-term operation.

The 24kV Pole Mounted SF6 Load Break Switch also supports high-frequency operation scenarios, making it suitable for distribution networks with frequent load transfer and switching demands.

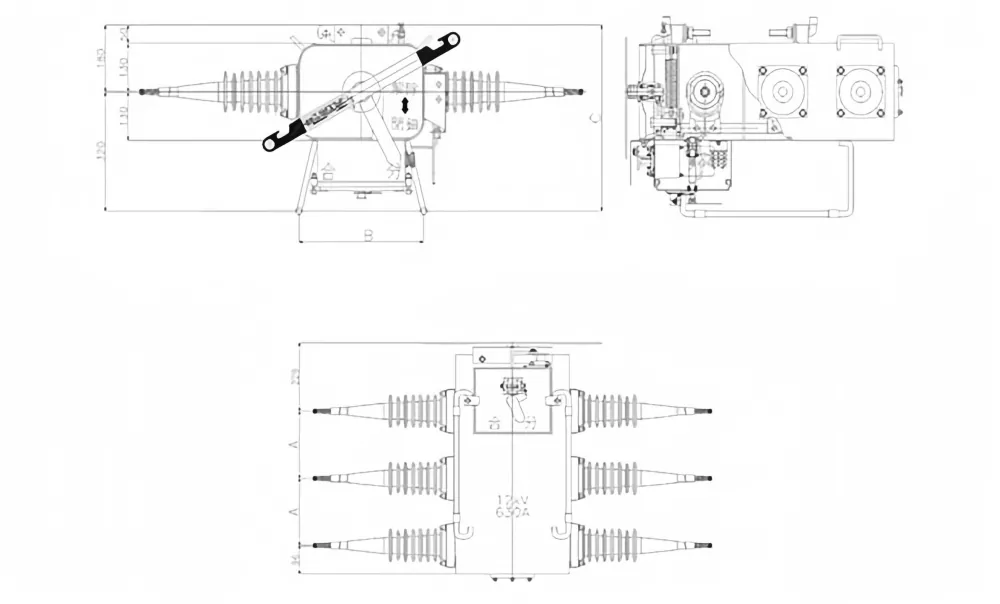

Product Dimensions

Operating Conditions

The equipment is designed for outdoor installation in distribution networks with varying environmental conditions. It operates reliably under temperature variations, humidity, and moderate pollution levels, making it suitable for diverse geographical regions.

In overhead distribution applications, the 24kV Pole Mounted SF6 Load Break Switch maintains stable performance even under frequent switching cycles and long-term continuous operation.

FAQ

Q1: What is the main function of this equipment?
A: It is used to switch load current and isolate faulty sections in medium-voltage overhead distribution networks.

Q2: Can it be integrated into smart grid systems?
A: Yes, it supports remote operation and can be integrated into distribution automation systems.

Q3: What installation type does it use?
A: It is a pole-mounted design suitable for overhead line installation.

Q4: Does it require frequent maintenance?
A: No, the sealed SF6 structure significantly reduces maintenance requirements.

Q5: Where is it typically applied?
A: It is widely used in urban distribution networks, rural electrification projects, industrial zones, and railway power systems.
