Article Abstract
The 17.5KV Fixed Type Indoor Circuit Breaker is a critical medium-voltage switching device designed to ensure safe, stable, and efficient power distribution in industrial, commercial, and utility environments. This article explores its structure, working principles, technical advantages, installation considerations, and maintenance requirements. It also addresses common customer concerns such as reliability, arc interruption performance, safety risks, and lifecycle cost optimization. By understanding these aspects, operators and engineers can make more informed decisions when selecting medium-voltage protection equipment.
Table of Contents

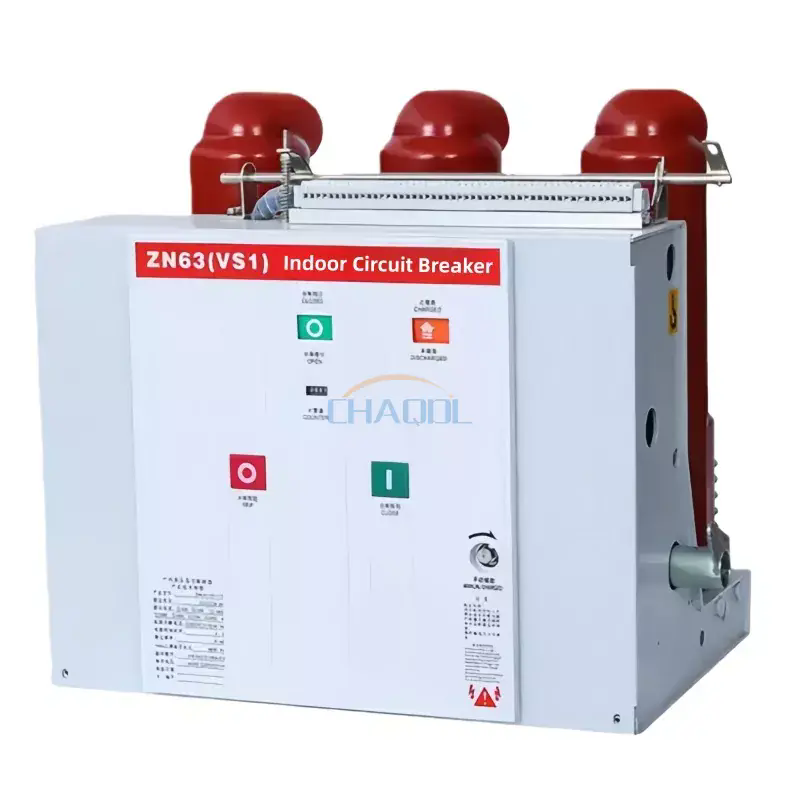

The 17.5KV Fixed Type Indoor Circuit Breaker is engineered for medium-voltage power systems where stable interruption and reliable fault isolation are required. It is widely used in indoor substations, industrial distribution networks, and energy infrastructure systems where space constraints and operational safety are critical concerns.
Unlike low-voltage protection devices, this breaker is specifically designed to handle high-energy fault currents while maintaining insulation integrity and operational consistency. Its fixed installation structure ensures mechanical stability and reduced maintenance complexity compared to withdrawable designs.
This circuit breaker integrates vacuum interruption technology with a fixed mounting configuration. The vacuum interrupter ensures rapid arc extinction, while the fixed structure provides high mechanical strength and minimal moving interfaces.
Core structural components include:
The design prioritizes compactness and reliability, making it suitable for confined indoor switchgear rooms.
The operational reliability of a 17.5KV Fixed Type Indoor Circuit Breaker comes from its engineering precision and optimized insulation structure.
These characteristics directly address common operational pain points such as arc instability, frequent maintenance downtime, and space limitations in modern power distribution systems.
The 17.5KV Fixed Type Indoor Circuit Breaker is widely deployed across multiple industries due to its adaptability and reliability.
In each scenario, the breaker ensures stable load control, fault isolation, and system protection under dynamic electrical conditions.
| Parameter | Specification |
|---|---|
| Rated Voltage | 17.5KV |
| Rated Frequency | 50/60 Hz |
| Interrupting Medium | Vacuum |
| Rated Current | 630A – 3150A (depending on model) |
| Short-Circuit Breaking Capacity | Up to 31.5kA |
| Installation Type | Fixed Indoor Type |
| Mechanical Endurance | 10,000+ operations |
These parameters demonstrate the breaker’s ability to operate under high electrical stress while maintaining long-term mechanical integrity.
Proper installation is essential for ensuring long-term reliability and minimizing operational risk. The following steps are generally recommended:
Incorrect installation may lead to overheating, dielectric failure, or reduced switching performance.
Although the fixed type design reduces maintenance requirements, periodic inspection is still necessary for safe operation.
Preventive maintenance ensures stable performance and reduces unexpected outages in critical infrastructure systems.
| Feature | Fixed Type Breaker | Withdrawable Type Breaker |
|---|---|---|
| Maintenance Convenience | Moderate | High |
| Installation Complexity | Low | Higher |
| Space Requirement | Compact | Larger |
| Operational Flexibility | Moderate | High |
| Cost Efficiency | More economical | Higher cost |
Fixed type breakers are preferred in applications where stability, compact design, and cost efficiency are prioritized over modular flexibility.
Q1: What makes a 17.5KV fixed type breaker suitable for indoor use?
It is designed with compact insulation systems and vacuum interruption technology, making it safe and efficient for enclosed environments.
Q2: How often should maintenance be performed?
Typically once or twice per year depending on operating conditions and load cycles.
Q3: What is the main advantage of vacuum interruption?
It ensures rapid arc extinction and reduces contact erosion, improving lifespan and reliability.
Q4: Can it be used in renewable energy systems?
Yes, it is commonly integrated into solar and wind power substations for medium-voltage distribution.
Q5: What environmental conditions affect performance?
High humidity, dust accumulation, and poor ventilation may reduce insulation performance and should be controlled.
The 17.5KV Fixed Type Indoor Circuit Breaker plays a vital role in ensuring stable, secure, and efficient power distribution across modern electrical systems. Its vacuum-based interruption technology, compact design, and long operational lifespan make it a preferred solution for medium-voltage indoor applications. Engineers and operators seeking reliable performance with reduced maintenance overhead can significantly benefit from this solution.
For high-quality engineering solutions and customized configurations, Anqiang Power provides professional-grade products designed for demanding electrical environments. contact us to learn more about specifications, technical support, and tailored distribution solutions.
