Article Summary:
A 12kV withdrawable indoor circuit breaker is a critical medium-voltage switchgear component designed for safe, reliable, and flexible power distribution inside substations, industrial plants, and commercial electrical systems. This article explains its working principle, structure, advantages, application scenarios, maintenance considerations, and selection guidance. It is intended to help engineers, procurement teams, and facility operators reduce operational risks and improve system reliability.

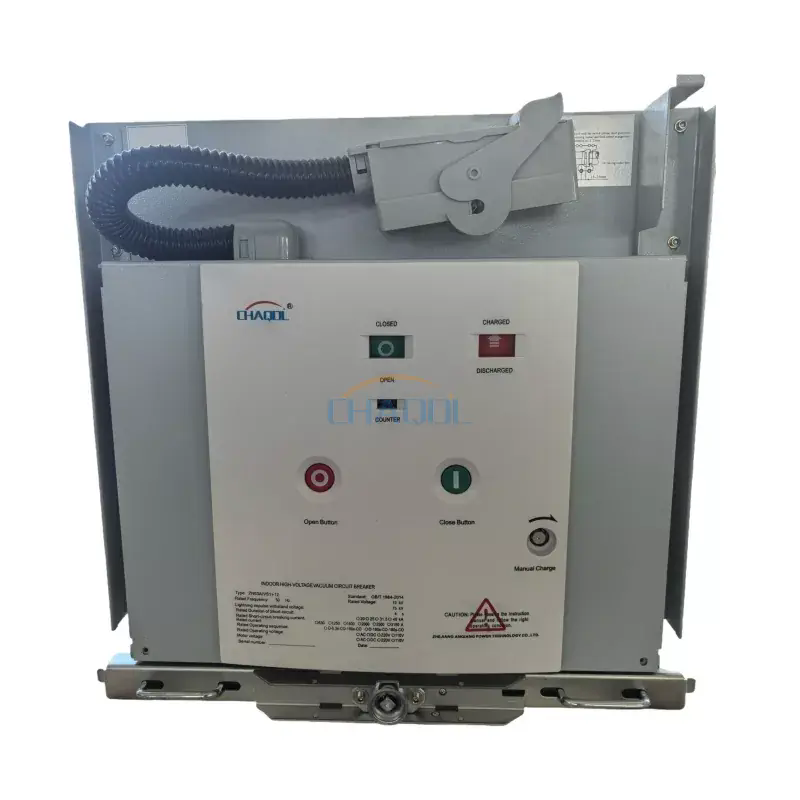

A 12kV withdrawable indoor circuit breaker is a medium-voltage switching device installed in metal-clad switchgear systems. Its main function is to interrupt fault currents and protect electrical networks from overloads, short circuits, and abnormal operating conditions. The “withdrawable” design allows the breaker to be safely extracted from the switchgear panel for maintenance or replacement without disturbing the entire system.
This type of circuit breaker is widely used in modern power distribution networks where uptime, safety, and serviceability are critical requirements.
The operating principle of a 12kV withdrawable indoor circuit breaker is based on rapid mechanical separation of contacts combined with arc quenching technology. Under normal conditions, the breaker allows current to flow through closed contacts. When a fault occurs, the protection relay sends a trip signal to the breaker mechanism.
This fast response prevents equipment damage, reduces fire risk, and ensures system stability.
The typical structure of a 12kV withdrawable indoor circuit breaker includes several integrated components:
| Component | Function |
|---|---|
| Vacuum Interrupter | Extinguishes arc and interrupts current flow |
| Operating Mechanism | Provides mechanical force for opening/closing contacts |
| Withdrawable Truck | Enables movement in and out of switchgear panel |
| Insulation System | Ensures electrical isolation and safety |
| Control Unit | Manages tripping and closing signals |
| Interlocking System | Prevents incorrect operation during maintenance |
Modern power systems require equipment that is not only reliable but also easy to maintain. The 12kV withdrawable indoor circuit breaker provides several key advantages:
The 12kV withdrawable indoor circuit breaker is widely used in medium-voltage distribution systems across multiple industries:
Its adaptability makes it a core component in ensuring stable electricity supply in critical infrastructure environments.
Understanding the difference between fixed and withdrawable designs is essential when selecting switchgear solutions.
| Feature | Fixed Type | Withdrawable Type |
|---|---|---|
| Maintenance | Difficult, requires system shutdown | Easy, can be removed safely |
| Flexibility | Limited | High |
| Safety | Moderate | High with interlocking system |
| Initial Cost | Lower | Higher |
Although withdrawable breakers have a higher upfront cost, they significantly reduce long-term operational downtime and maintenance risks.
Proper maintenance ensures long service life and stable performance. Operators should follow structured inspection routines:
Environmental conditions such as humidity, dust, and temperature fluctuations should also be monitored to avoid performance degradation.
Selecting a suitable breaker requires evaluation of technical and operational parameters:
High-quality manufacturing standards and compliance with international electrical safety norms are essential to ensure long-term reliability.
Products designed and manufactured by Zhejiang Anqiang Power Technology Co., Ltd. are engineered to meet strict performance and safety expectations in medium-voltage power systems.
Q1: What is the main function of a 12kV withdrawable indoor circuit breaker?
It protects electrical systems by interrupting fault currents and allowing safe maintenance through a withdrawable structure.
Q2: What makes the withdrawable type safer?
It can be physically isolated from the system, reducing the risk of accidental electrical contact during maintenance.
Q3: How often should it be maintained?
Routine inspections are typically recommended annually, with more frequent checks in harsh environments.
Q4: Can it be used in renewable energy systems?
Yes, it is widely used in solar and wind power substations for reliable power distribution control.
The 12kV withdrawable indoor circuit breaker plays a vital role in modern medium-voltage power distribution systems. Its combination of safety, flexibility, and strong fault interruption capability makes it a preferred choice for critical infrastructure applications. Proper selection, installation, and maintenance significantly enhance system reliability and reduce operational risks.
With advanced engineering and strict quality control, Zhejiang Anqiang Power Technology Co., Ltd. provides solutions designed to meet demanding industrial requirements and ensure stable power system performance.
For detailed specifications, technical consultation, or project support, contact us today to explore how our solutions can improve your power distribution system efficiency and safety.
