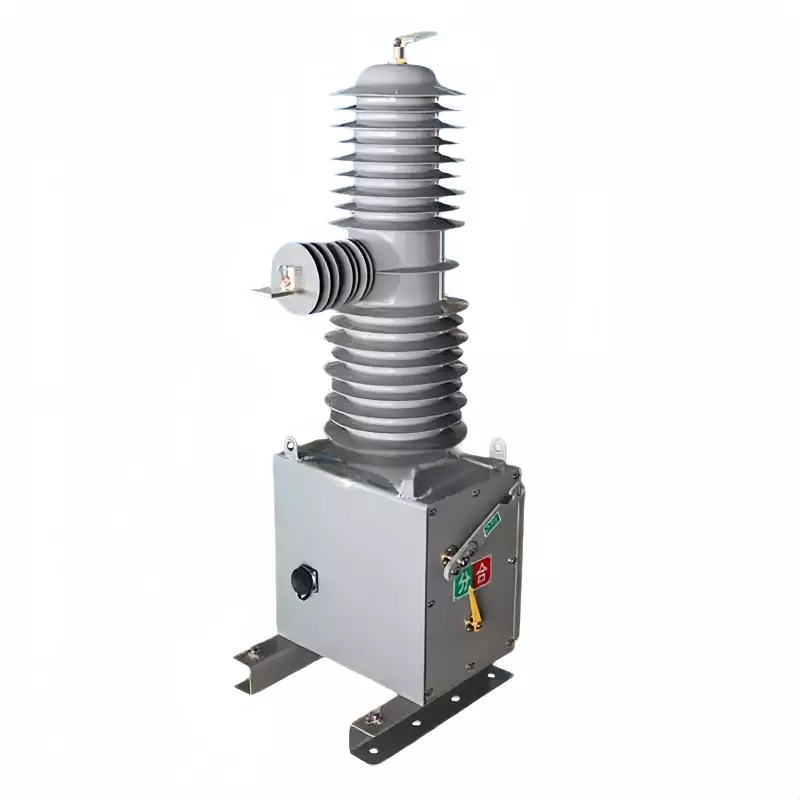

Anqiang Power specializes in the manufacture of the 33kV Single Pole Outdoor Circuit Breaker, designed for reliable switching and protection in medium-voltage overhead distribution systems. With a compact pole-mounted structure, fast operating mechanism, strong outdoor insulation, and automatic reclosing capability, this type of breaker provides a practical solution for utilities, substations, and industrial power distribution networks.
A dependable outdoor circuit breaker must do more than interrupt current during a fault. It must withstand changing weather conditions, maintain insulation performance, operate quickly, and support reliable network protection over many years. The 33kV Single Pole Outdoor Circuit Breaker combines a compact single-pole structure with a permanent magnet operating mechanism, high-strength insulation components, and intelligent control technology. Its rated voltage is 35 kV, with rated current options of 630 A and 1250 A and short-circuit breaking capacities of 20, 25, and 31.5 kA. These characteristics make it suitable for overhead distribution lines, substations, utility networks, and industrial electrical systems where dependable outdoor switching is essential.
1. What Is a 33kV Single Pole Outdoor Circuit Breaker?
2. Why Is It Important for Medium-Voltage Distribution?
3. What Are Its Key Technical Features?
4. Technical Specifications at a Glance
5. Where Is This Circuit Breaker Used?
6. Installation and Commissioning Considerations
7. How Should Buyers Select the Right Model?
A 33kV Single Pole Outdoor Circuit Breaker is a medium-voltage switching and protection device designed for outdoor electrical distribution systems. It can interrupt load current, fault current, and short-circuit current when abnormal electrical conditions occur.
Unlike conventional indoor switchgear, an outdoor pole-mounted breaker must maintain dependable electrical and mechanical performance while exposed to temperature changes, wind, pollution, moisture, and other environmental influences. A compact single-pole configuration can simplify pole-mounted installation while providing the switching functionality required by overhead networks.
The Anqiang Power design incorporates a permanent magnet operating mechanism and high-strength insulation components. The product is also equipped with an intelligent controller and can be customized for specific voltage requirements according to project needs. Its design emphasizes fast response, stable operation, long service life, and reduced maintenance requirements.
Power distribution networks require protection equipment that can respond quickly when a fault occurs. A short circuit left uncleared can damage transformers, cables, conductors, and other network components while increasing the risk of extended service interruptions.
An outdoor circuit breaker provides an important protection point between the distribution network and downstream electrical equipment. When integrated with an appropriate protection and control system, it can help isolate faulted sections while allowing healthy portions of the network to continue operating.
For utilities and industrial facilities, these capabilities can contribute to improved distribution reliability and more efficient fault management.
The single-pole design is suitable for outdoor pole-mounted applications where installation space and equipment arrangement are important considerations. A compact structure can help simplify the integration of switching equipment into existing overhead distribution infrastructure.
The permanent magnet mechanism is designed to provide stable and rapid switching performance. According to the published technical data, the opening time is approximately 20–45 ms and the closing time is approximately 25–45 ms.
The breaker is specified for up to 30 rated short-circuit breaking operations and a mechanical life of 20,000 operations. These ratings make endurance an important consideration for networks requiring repeated switching and dependable long-term operation.
The equipment is designed for outdoor operation under demanding conditions, including pollution degree IV. Its stated operating temperature range is -30°C to +60°C, while the specified storage temperature range extends from -40°C to +85°C.
Fast operation and automatic reclosing capability can be particularly valuable on overhead distribution networks, where some faults may be temporary. Appropriate control and protection settings should always be established according to the electrical system design and applicable standards.
The following specifications summarize the key published parameters of this outdoor breaker:
| Parameter | Specification |
|---|---|
| Rated Voltage | 35 kV |
| Rated Current | 630 / 1250 A |
| Rated Frequency | 50 / 60 Hz |
| Power-Frequency Withstand Voltage | 80 / 95 kV, 1 minute |
| Lightning Impulse Withstand Voltage | 185 kV peak |
| Short-Circuit Breaking Current | 20 / 25 / 31.5 kA |
| Short-Circuit Making Current | 80 kA peak |
| Mechanical Life | 20,000 operations |
| Opening Time | 20–45 ms |
| Closing Time | 25–45 ms |
| Operating Temperature | -30°C to +60°C |
| Maximum Installation Altitude | 2,000 m |
These parameters should be evaluated together with the system voltage, available fault current, insulation coordination, installation environment, protection settings, and applicable local electrical requirements.
The application range of a 33kV-class outdoor breaker extends across several medium-voltage power distribution scenarios.
For applications with frequent temporary faults, automatic reclosing can be particularly useful. However, coordination between the breaker, protection relay or intelligent controller, upstream equipment, and downstream devices should be verified before commissioning.
Correct installation is essential for maintaining the electrical safety and operating reliability of a medium-voltage outdoor circuit breaker. The mounting structure should provide sufficient mechanical stability, while grounding and phase connections must comply with the project's engineering requirements.
Environmental conditions should also be considered. The published operating conditions specify an ambient temperature of -30°C to +60°C, an altitude of no more than 2,000 meters, wind speed of up to 34 m/s, and pollution degree IV.
Choosing a medium-voltage circuit breaker should not be based on voltage alone. A technically suitable model must match the electrical and environmental characteristics of the intended installation.
| Selection Factor | What to Check | Why It Matters |
|---|---|---|
| System Voltage | Nominal and maximum system voltage | Ensures suitable insulation and switching capability |
| Rated Current | Normal feeder or load current | Prevents inappropriate current selection |
| Fault Level | Prospective short-circuit current | Determines required interruption capacity |
| Installation Environment | Temperature, altitude, wind, and pollution | Supports reliable outdoor operation |
| Control Requirements | Manual, electric, intelligent, or automatic reclosing | Ensures compatibility with the protection system |
| Mounting Arrangement | Pole, steel frame, clearances, and phase spacing | Supports safe mechanical and electrical installation |
For project-specific requirements, buyers should provide the system voltage, rated current, short-circuit level, environmental conditions, control voltage, installation arrangement, and required protection functions when requesting a quotation. This allows the manufacturer to recommend a configuration rather than relying on a generic product selection.
Its primary function is to switch and interrupt electrical circuits while helping protect medium-voltage overhead distribution systems against fault and short-circuit currents. It can also be integrated into network protection and automatic reclosing strategies.
Yes. The published operating conditions cover temperatures from -30°C to +60°C, installation altitudes up to 2,000 meters, wind speeds up to 34 m/s, and pollution degree IV. Actual suitability should be confirmed against the specific project environment.
The published technical specification lists rated current options of 630 A and 1250 A. The appropriate selection depends on the load characteristics and electrical design of the distribution system.
The listed rated short-circuit breaking current options are 20 kA, 25 kA, and 31.5 kA. Buyers should select the appropriate value based on the calculated prospective fault current at the installation point.
Yes. Automatic reclosing capability is listed among the product features. Reclosing settings and protection coordination should be configured according to the specific network design.
The published specification gives a mechanical life of 20,000 operations, while the rated short-circuit breaking operation count is specified as 30 times.
A reliable outdoor circuit breaker can make a significant difference in the safety, continuity, and maintainability of a medium-voltage distribution system. With a compact pole-mounted configuration, permanent magnet operating mechanism, strong insulation, rapid switching performance, automatic reclosing capability, and multiple current and short-circuit ratings, the 33kV Single Pole Outdoor Circuit Breaker is designed to address a wide range of utility, substation, and industrial distribution requirements. If you are evaluating a suitable configuration for your network, contact us with your voltage, current, fault-level, environmental, and installation requirements to discuss a customized solution with Anqiang Power.
