Power distribution systems installed outdoors face harsh environmental conditions, including extreme temperatures, heavy rain, dust accumulation, salt spray, and frequent switching operations. Traditional circuit breakers often require extensive maintenance and consume additional operating power, increasing operating costs and reducing system reliability.
An Outdoor Permanent Magnet Circuit Breaker provides a modern solution by utilizing permanent magnetic operating mechanisms instead of conventional spring mechanisms. This design delivers faster operation, lower energy consumption, longer mechanical life, and improved stability under challenging outdoor environments.
In this guide, we will explain how Outdoor Permanent Magnet Circuit Breakers work, their advantages, applications, selection criteria, maintenance strategies, and why utility companies and industrial operators are increasingly adopting this technology.

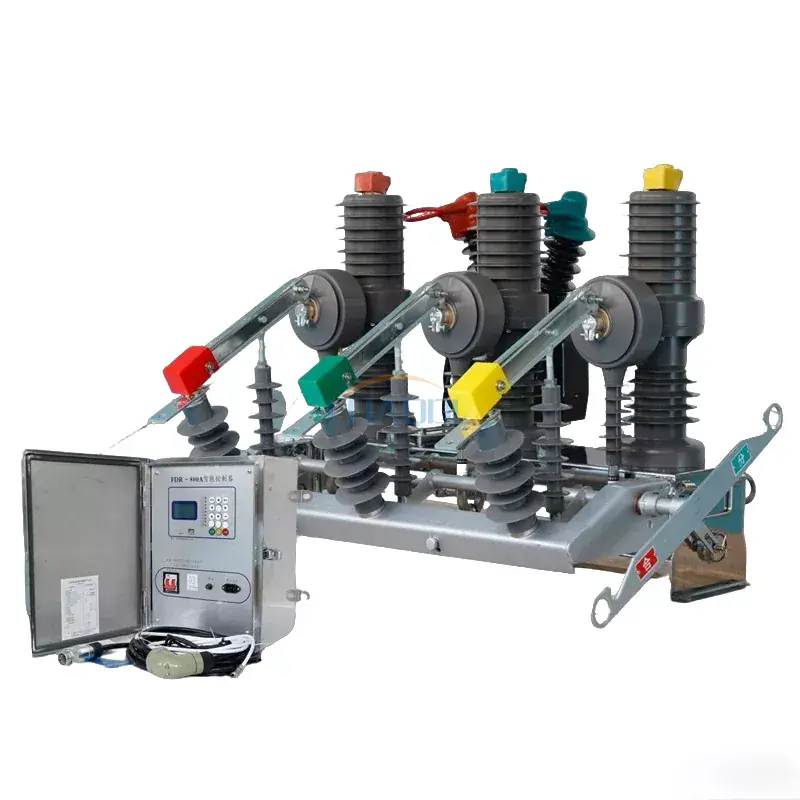

An Outdoor Permanent Magnet Circuit Breaker is an intelligent medium-voltage switching device designed for outdoor electrical distribution systems.
Unlike conventional spring-operated breakers, it uses a permanent magnet actuator to control opening and closing operations.
The system combines:
These components work together to provide stable switching performance while minimizing mechanical wear.
The breaker is specifically engineered to operate under demanding environments while maintaining high operational accuracy.
The operating principle is relatively straightforward.
Unlike spring mechanisms that require multiple moving parts, permanent magnetic systems simplify the operation process significantly.
This reduces:
Many operators still rely on traditional spring-operated circuit breakers.
However, several pain points continue to impact their performance.
| Common Problem | Operational Impact |
|---|---|
| Complex mechanical structures | Higher failure rates |
| Frequent lubrication requirements | Increased maintenance costs |
| Spring fatigue over time | Reduced operating reliability |
| High power consumption | Greater operating expenses |
| Environmental sensitivity | Performance degradation |
| Longer operation time | Delayed fault isolation |
Power interruptions can cause significant losses in industrial facilities, renewable energy projects, and public utility networks.
Therefore, many organizations are upgrading to permanent magnet technologies.
Permanent magnetic mechanisms have fewer moving parts, reducing the probability of mechanical failure.
These systems can withstand tens of thousands of operating cycles without significant wear.
The permanent magnet only consumes energy during switching actions.
No continuous power supply is needed to maintain breaker position.
Rapid switching protects transformers, cables, generators, and downstream equipment from severe damage.
Maintenance intervals become much longer due to the simplified design.
The breaker performs reliably under:
Outdoor Permanent Magnet Circuit Breakers are suitable for numerous industries.
| Application | Main Purpose |
|---|---|
| Power Utility Substations | Network protection |
| Wind Farms | Generator switching |
| Solar Power Plants | Grid connection protection |
| Industrial Parks | Distribution management |
| Mining Operations | Heavy load protection |
| Rail Transit Systems | Reliable power supply |
| Petrochemical Plants | Critical equipment safety |
| Smart Grid Projects | Remote automation |
| Feature | Spring Mechanism Breaker | Permanent Magnet Breaker |
|---|---|---|
| Mechanical Complexity | High | Low |
| Maintenance Frequency | Frequent | Minimal |
| Energy Consumption | Higher | Lower |
| Operating Speed | Moderate | Fast |
| Mechanical Life | Medium | Long |
| Environmental Resistance | Average | Excellent |
| Remote Monitoring Compatibility | Limited | Excellent |
| Total Cost of Ownership | Higher | Lower |
Before purchasing, evaluate the following factors carefully.
Select equipment compatible with your network voltage.
Common options include:
Ensure the breaker can handle operational loads.
Typical ranges:
Verify fault interruption capability.
Typical values include:
Consider:
Modern facilities often require:
Proper installation maximizes operational lifespan.
Recommended practices include:
Because permanent magnet mechanisms have fewer moving components, maintenance requirements are significantly lower than traditional systems.
This helps reduce operational downtime.
Anqiang specializes in advanced power distribution equipment designed for demanding industrial and utility environments.
Our Outdoor Permanent Magnet Circuit Breakers are engineered to deliver dependable performance, long service life, and intelligent operational capabilities.
Advantages include:
Our engineering team works closely with customers to ensure every project receives a suitable and cost-effective solution.
Q1: Is an Outdoor Permanent Magnet Circuit Breaker suitable for extreme climates?
Yes. It is designed to operate reliably in environments with high humidity, strong winds, heavy rain, and wide temperature variations.
Q2: Does it consume electricity continuously?
No. Energy is only consumed during opening and closing operations.
Q3: How long is its service life?
With proper maintenance, it can provide many years of stable operation and support numerous switching cycles.
Q4: Is remote control available?
Yes. Most systems can integrate with SCADA and intelligent monitoring platforms.
Q5: Can it replace existing spring-operated breakers?
In many projects, yes. However, technical evaluations should be conducted before replacement.
As electrical networks become smarter and more demanding, utilities and industrial operators require equipment that delivers superior reliability, lower operating costs, and longer service life.
An Outdoor Permanent Magnet Circuit Breaker offers a practical and future-oriented solution by combining advanced magnetic actuation technology with robust outdoor protection.
If you are planning to upgrade your power distribution infrastructure, Anqiang can provide professional support, customized solutions, and dependable products tailored to your project requirements.
Ready to improve the safety and efficiency of your electrical system? Contact us today and let Anqiang help you build a more reliable, intelligent, and cost-effective power distribution network for your next project.
-
