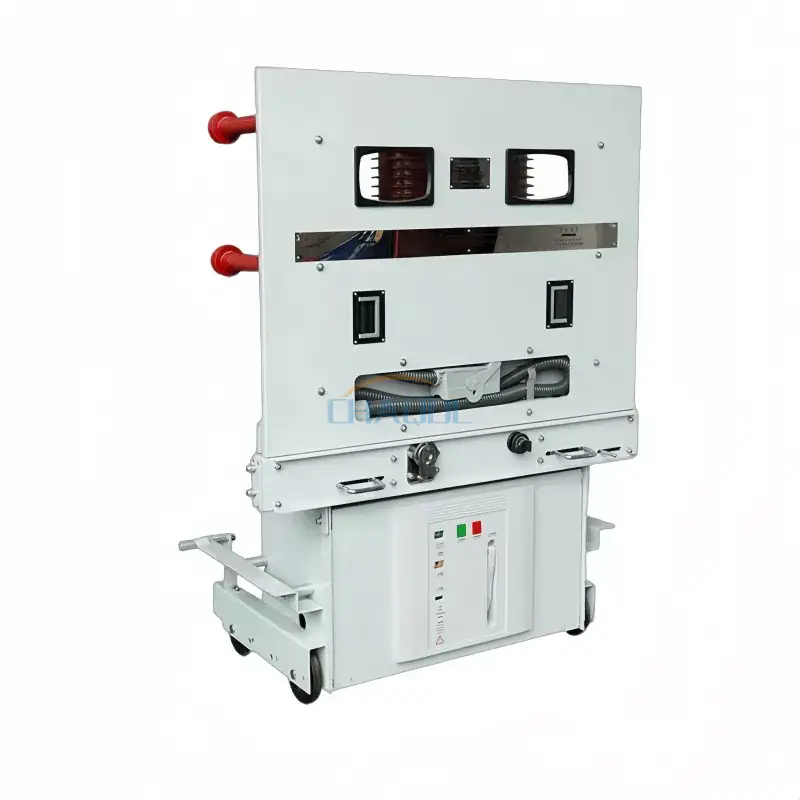

A 36kV Indoor High Voltage Circuit Breaker is a critical component in modern medium-to-high voltage power systems, ensuring safe interruption of fault currents and stable energy distribution in substations, industrial plants, and commercial infrastructures. This article explains how these breakers work, the key selection criteria, installation considerations, maintenance practices, and common operational challenges. It is designed to help engineers, procurement teams, and project planners make informed decisions while improving system reliability and operational safety.
A 36kV Indoor High Voltage Circuit Breaker is engineered to protect electrical networks operating at medium-high voltage levels. It interrupts fault currents such as short circuits and overloads, preventing equipment damage and ensuring continuous power system stability. These breakers are widely used in indoor switchgear assemblies, particularly in GIS (Gas Insulated Switchgear) and AIS (Air Insulated Switchgear) systems.
In modern power distribution networks, reliability and safety are non-negotiable. As demand increases in industrial zones, urban grids, and renewable energy integration systems, the role of high-performance circuit breakers becomes even more essential.
These challenges often lead to unexpected outages, increased operational costs, and reduced system efficiency. A properly selected 36kV indoor circuit breaker significantly mitigates these risks.
The core function of a 36kV indoor circuit breaker is to detect abnormal current conditions and interrupt the circuit within milliseconds. When a fault occurs, the breaker contacts separate, and an arc is formed. This arc is then extinguished using an insulating medium such as vacuum or SF6 gas.
Vacuum circuit breakers are particularly common at 36kV levels due to their high dielectric strength, low maintenance requirements, and environmental advantages.
Selecting the correct model ensures long-term stability, reduces downtime, and improves overall electrical safety performance.
| Parameter | Typical Value |
|---|---|
| Rated Voltage | 36kV |
| Rated Frequency | 50/60 Hz |
| Rated Current | 630A – 3150A |
| Breaking Capacity | 25kA – 40kA |
| Insulation Medium | Vacuum / SF6 |
| Mechanical Life | 10,000 – 30,000 operations |
Proper installation is essential for ensuring safe operation and long service life. Indoor circuit breakers must be installed in well-ventilated switchgear rooms with controlled humidity and temperature.
Although modern 36kV circuit breakers require minimal maintenance, periodic inspection remains essential. Maintenance routines typically include contact wear inspection, insulation testing, and mechanical operation checks.
36kV indoor high voltage circuit breakers are widely used across multiple industries:
High voltage circuit breakers must comply with international standards such as IEC 62271 series. These standards define requirements for insulation, mechanical endurance, and electrical performance.
Compliance ensures operational safety, interoperability, and long-term reliability in complex power systems.
Anqiang Power is committed to delivering advanced electrical switching solutions tailored for modern power infrastructure. The company focuses on high-performance 36kV indoor circuit breakers designed with enhanced arc extinguishing technology, robust mechanical structures, and optimized safety features.
Q1: What is the main function of a 36kV indoor circuit breaker?
It protects electrical systems by interrupting fault currents and preventing equipment damage.
Q2: What is the difference between vacuum and SF6 breakers?
Vacuum breakers use a vacuum arc chamber, while SF6 breakers use sulfur hexafluoride gas for arc extinction. Vacuum types are more environmentally friendly.
Q3: How often should maintenance be performed?
Typically once per year, depending on operating conditions and load frequency.
Q4: Can these breakers be integrated into smart grids?
Yes, modern designs support SCADA and digital monitoring systems.
Selecting the right 36kV Indoor High Voltage Circuit Breaker is essential for ensuring safe, efficient, and uninterrupted power distribution. By understanding technical parameters, operational principles, and installation requirements, decision-makers can significantly improve system reliability and reduce operational risks.
With advanced engineering capabilities, Anqiang Power continues to provide dependable solutions for modern electrical infrastructure challenges.
For more technical details, customized solutions, or procurement inquiries regarding 36kV Indoor High Voltage Circuit Breakers, please contact Anqiang Power today. Our engineering team is ready to support your project with professional guidance and tailored electrical solutions.
