Summary: A reliable medium-voltage distribution network depends on fast fault interruption, dependable insulation, and stable outdoor performance. The 33kV Single Pole Outdoor Circuit Breaker from Anqiang is designed for overhead distribution applications where compact pole-mounted construction, rapid switching, high breaking capacity, and environmental resistance are essential. With a permanent magnet operating mechanism, intelligent control, and robust insulation design, it provides a practical solution for utilities, substations, and industrial power distribution systems.

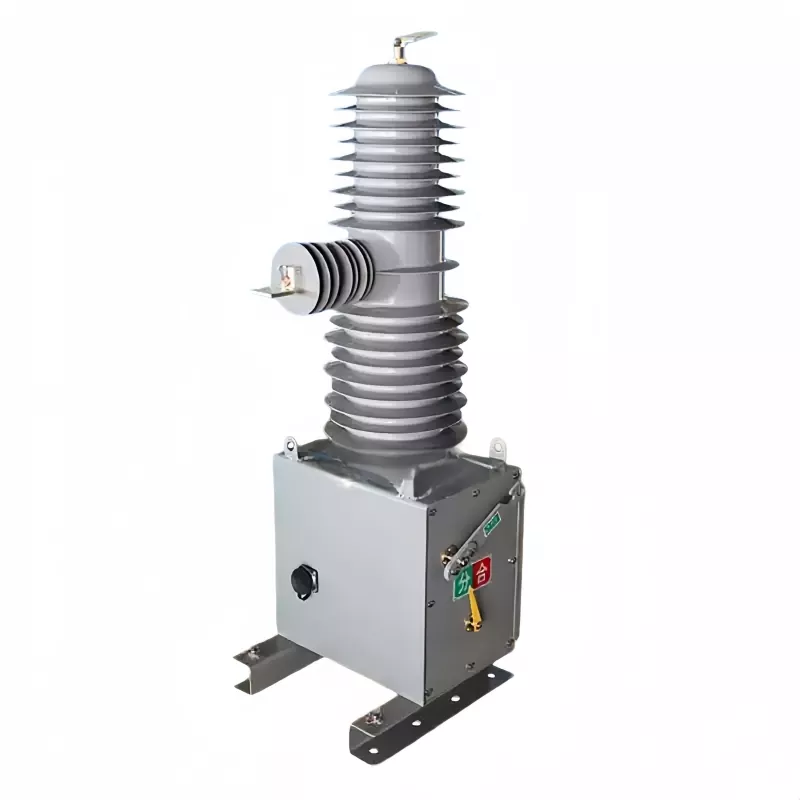

A 33kV Single Pole Outdoor Circuit Breaker is a medium-voltage switching and protection device designed for outdoor overhead power distribution systems. Its primary role is to control electrical circuits under normal operating conditions and interrupt abnormal conditions such as overloads, fault currents, and short circuits.
Unlike conventional indoor switchgear, an outdoor pole-mounted circuit breaker must withstand changing weather, temperature fluctuations, wind, pollution, and other environmental stresses. Therefore, its mechanical structure, insulation system, operating mechanism, and enclosure design all contribute to long-term reliability.
The Anqiang solution is designed around a compact single-pole configuration and incorporates a permanent magnet operating mechanism, high-strength insulation components, and an intelligent controller. The product is intended for applications where fast operation, dependable fault interruption, and reduced maintenance requirements are important.
Medium-voltage overhead networks cover long distances and often operate in exposed environments. A fault on one section of the network can potentially affect downstream transformers, feeders, industrial equipment, and customers if it is not interrupted quickly.
A properly selected 33kV outdoor circuit breaker helps address these risks by providing controlled switching and rapid fault interruption. Its protection function can help limit the duration of abnormal current and reduce the possibility of damage spreading through the distribution network.
Key benefits include:
When evaluating a medium-voltage outdoor breaker, buyers should consider more than its nominal voltage. Interrupting capability, insulation performance, operating speed, mechanical life, environmental suitability, and control requirements all influence whether the equipment is appropriate for a specific project.
The single-pole outdoor configuration is suitable for overhead distribution networks where equipment is installed on a utility pole or supporting steel structure. Its compact arrangement can help optimize installation space while maintaining the necessary electrical clearances.
The permanent magnet operating mechanism is designed to provide fast and stable switching performance. The specified control voltage is DC220V, while the opening and closing characteristics are engineered for repeatable operation.
Outdoor medium-voltage equipment must maintain insulation integrity under electrical and environmental stress. This model provides a 1-minute power-frequency withstand voltage of 80/95kV and a lightning impulse withstand voltage of 185kV, according to the published technical data.
The breaker is available with rated short-circuit breaking currents of 20kA, 25kA, and 31.5kA. This range allows engineers to match the breaker with different network fault-level requirements.
An intelligent controller can support coordinated switching and protection functions. For overhead networks, automatic reclosing can also help restore service after temporary faults when the protection scheme and network design permit it.
Technical specifications should always be checked against the actual project design, system fault level, insulation coordination, installation environment, and applicable standards. The following table summarizes the principal published parameters for this product.
| Technical Parameter | Specification |
|---|---|
| Rated Voltage | 35 kV |
| Rated Current | 630 / 1250 A |
| Rated Frequency | 50 / 60 Hz |
| Power-Frequency Withstand Voltage, 1 min | 80 / 95 kV |
| Lightning Impulse Withstand Voltage | 185 kV peak |
| Rated Short-Circuit Breaking Current | 20 / 25 / 31.5 kA |
| Rated Short-Circuit Making Current | 80 kA peak |
| Rated Peak Withstand Current | 80 kA |
| Short-Duration Withstand Current | 31.5 kA for 4 s |
| Mechanical Life | 20,000 operations |
| Control Voltage | DC220V |
| Opening Time | 20–45 ms |
| Closing Time | 25–45 ms |
| Weight | Approximately 100 kg |
These specifications demonstrate why this type of breaker can be considered for medium-voltage distribution projects where high insulation strength, fault interruption, and repeated mechanical operation are required.
The 33kV Single Pole Outdoor Circuit Breaker is particularly suitable for medium-voltage overhead distribution environments. Its outdoor construction and pole-mounted configuration make it useful in a variety of power infrastructure applications.
For a China supplier or manufacturer evaluation, buyers should assess not only product specifications but also engineering support, customization capability, production quality, testing procedures, delivery capability, and after-sales service.
Correct installation is essential for the safe operation of any medium-voltage circuit breaker. The supporting pole or steel structure must provide adequate mechanical stability, while grounding and electrical connections must comply with the project's engineering requirements.
A typical commissioning process should include:
Installation and commissioning should be performed by appropriately qualified electrical personnel following the manufacturer's documentation and applicable local safety requirements.
Choosing a 33kV outdoor breaker should begin with the electrical characteristics of the network rather than price alone. A technically suitable device should match the system's voltage, current, fault level, insulation requirements, control system, and environmental conditions.
Before purchasing, consider the following:
The published operating conditions for this model include an ambient temperature range of -30°C to +60°C, an altitude of up to 2,000 meters, wind speeds up to 34 m/s, and pollution degree IV. Storage temperature is specified from -40°C to +85°C.
Its primary function is to control and interrupt electrical circuits in medium-voltage overhead distribution systems. During abnormal conditions, it helps isolate fault currents and protect downstream electrical equipment.
Yes. The product is specifically designed for outdoor pole-mounted applications and is engineered for environmental conditions including temperature variations, wind, and high pollution levels.
The published technical specifications list rated current options of 630A and 1250A. The appropriate selection depends on the electrical characteristics and load requirements of the distribution system.
The listed rated short-circuit breaking current options are 20kA, 25kA, and 31.5kA. Engineers should select the appropriate rating according to the calculated fault level of the installation.
The product is designed with fast operation and automatic reclosing capability, which can be beneficial for suitable overhead distribution networks where temporary faults are common.
Yes. Anqiang states that it can customize units to specific voltage ratings according to user requirements, making technical consultation useful for projects with non-standard electrical or installation requirements.
A dependable outdoor circuit breaker is an important component of a safe and resilient medium-voltage distribution network. The 33kV Single Pole Outdoor Circuit Breaker combines a compact pole-mounted configuration with high insulation performance, multiple current and breaking-capacity options, rapid operating characteristics, a permanent magnet mechanism, and intelligent control. These characteristics make it suitable for utility grids, substations, industrial distribution systems, and other outdoor medium-voltage applications.
For buyers comparing a China manufacturer or supplier, technical compatibility should remain the first priority. Evaluate rated voltage, current, short-circuit capacity, insulation performance, environmental conditions, installation requirements, control compatibility, and customization needs before placing an order. If you are planning a new distribution project or upgrading an existing outdoor switching system, contact us to discuss your technical requirements and identify a suitable 33kV circuit breaker solution for your application.
