33KV Outdoor Circuit Breaker With Automatic Recloser

The 33KV Outdoor Circuit Breaker With Automatic Recloser, also known as the ZW32-40.5 Outdoor High Voltage Vacuum Circuit Breaker, is designed for medium-voltage overhead distribution networks, substations, utility grids, and smart power distribution systems. It is primarily used for switching load currents, interrupting overload currents, and clearing short-circuit faults while ensuring reliable power supply continuity.

Equipped with an advanced vacuum interruption system and intelligent automatic reclosing functionality, this outdoor vacuum circuit breaker can automatically restore power after temporary faults, significantly improving grid reliability and reducing outage durations. Its compact structure, lightweight design, and high mechanical endurance make it an ideal solution for modern distribution automation projects.

The ZW32-40.5 breaker is suitable for 33KV and 40.5KV power systems and supports local operation, remote control, fault monitoring, and communication-based distribution network management. It is widely used by utility companies, industrial facilities, renewable energy projects, and rural electrification networks worldwide.

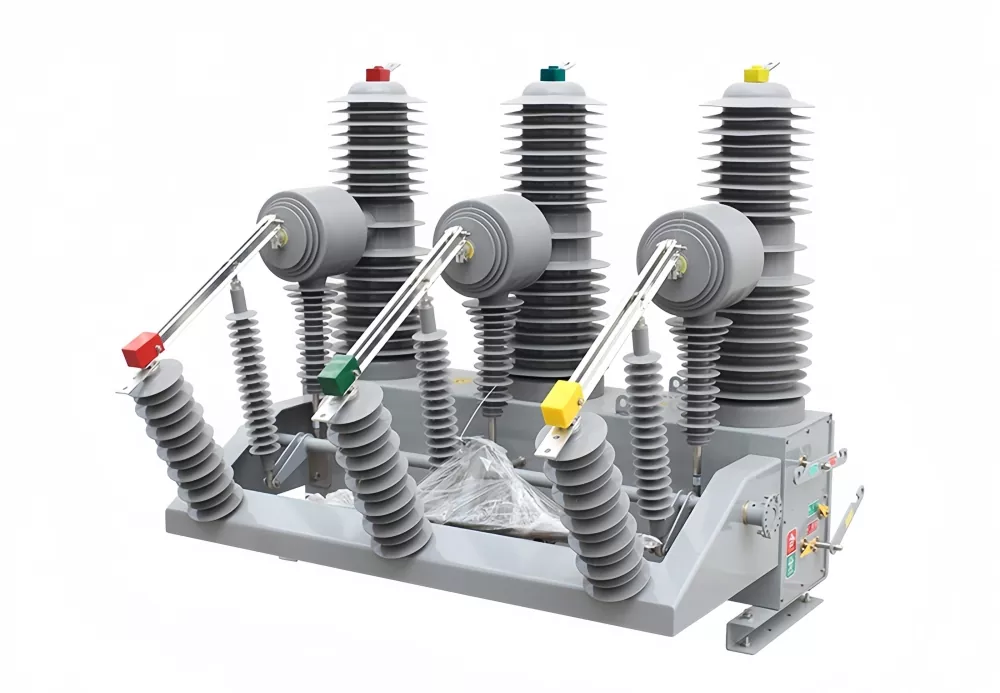

Product Appearance Diagram

Technical Parameters

Key Features

• Integrated automatic reclosing function improves power supply reliability and reduces outage time.
• Vacuum arc extinguishing technology provides excellent interrupting performance and long service life.
• Suitable for 33KV and 40.5KV overhead distribution networks and substation applications.
• High short-circuit breaking capacity up to 31.5KA.
• Compact structure and lightweight design simplify transportation and installation.
• Supports local operation, remote control, telemetry, and distribution automation systems.
• Sealed pole construction enhances insulation performance and environmental resistance.
• Maintenance-free vacuum interrupter reduces operating costs throughout the equipment lifecycle.
• Compatible with SCADA, smart grid, and utility network monitoring systems.
• Long mechanical life of up to 10,000 operations ensures dependable long-term performance.

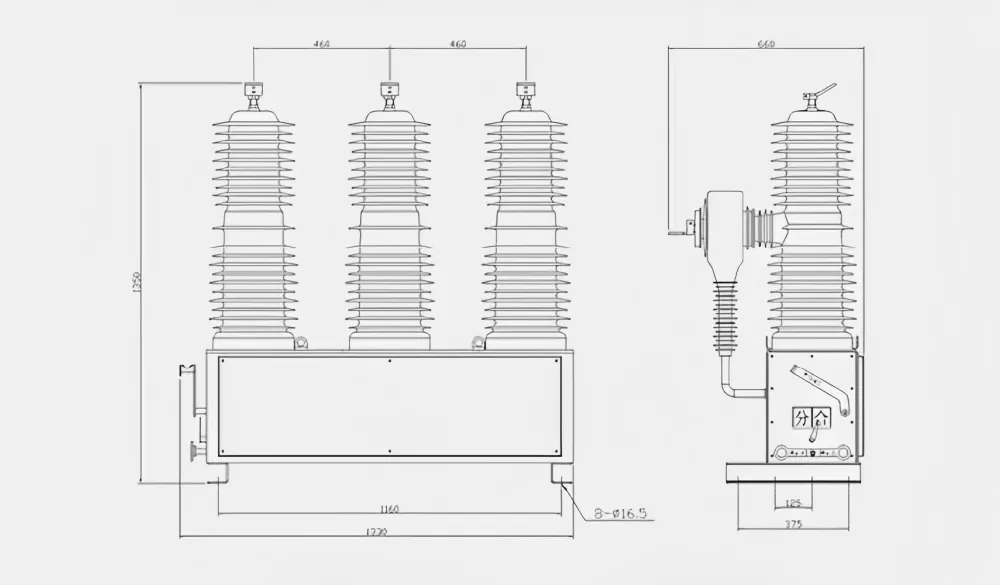

Product Dimensions Diagram

Product Structure and Working Principle

The 33KV Outdoor Circuit Breaker With Automatic Recloser mainly consists of an integrated sealed pole, vacuum interrupter, current transformer, operating mechanism, insulated support structure, and weather-resistant enclosure. The cabinet is manufactured from high-quality steel to provide excellent mechanical protection and long-term outdoor durability.

Current transformers can be configured according to project requirements for metering, monitoring, and protection applications. When a fault occurs on the distribution line, the intelligent controller rapidly detects abnormal conditions and commands the vacuum circuit breaker to interrupt the fault current. For temporary faults such as lightning strikes or transient line disturbances, the automatic reclosing function restores power automatically after a preset interval, minimizing service interruptions.

Combined with an intelligent controller, the breaker supports local switching operations as well as remote monitoring and control through communication interfaces. Communication methods may include fiber optic networks, communication cables, GPRS, CDMA, GSM, or other utility communication systems, making it an ideal solution for smart grid and distribution automation projects.

Applications

This 33KV Outdoor Circuit Breaker With Automatic Recloser is widely used in power transmission and distribution systems where automatic fault isolation and service restoration are critical.

• Utility power distribution networks
• Overhead distribution lines
• Electrical substations
• Smart grid projects
• Renewable energy power plants
• Industrial and mining facilities
• Urban and rural electrification systems
• Railway and transportation power supply networks

Frequently Asked Questions

What is an automatic recloser circuit breaker?

An automatic recloser circuit breaker can automatically restore power after temporary faults occur on a distribution line. This significantly improves power supply continuity and reduces outage duration for end users.

What are the advantages of a vacuum circuit breaker?

Vacuum circuit breakers provide fast arc extinction, high reliability, low maintenance requirements, long service life, and environmentally friendly operation without oil or SF6 gas.

Can this breaker be integrated into a smart grid system?

Yes. The breaker supports remote monitoring, remote operation, fault diagnosis, and communication interfaces that can be integrated into SCADA and smart grid automation systems.

Where is the ZW32-40.5 vacuum circuit breaker commonly used?

It is commonly used in utility substations, overhead distribution networks, renewable energy projects, industrial power systems, and rural electrification infrastructure.

Why choose a 33KV outdoor automatic recloser?

A 33KV outdoor automatic recloser improves network reliability, minimizes outage times, reduces maintenance costs, and enhances fault management efficiency for modern power distribution systems.
