Indoor high voltage circuit breakers play a vital role in protecting electrical equipment, maintaining power system stability, and reducing costly downtime. Whether used in industrial plants, commercial buildings, utility substations, or renewable energy projects, selecting the right circuit breaker directly impacts operational safety and long-term performance.
This article explains how an Indoor High Voltage Circuit Breaker works, why it is essential, what features matter most during selection, and how choosing a reliable manufacturer such as Anqiang Power can help improve the safety and efficiency of your electrical infrastructure.

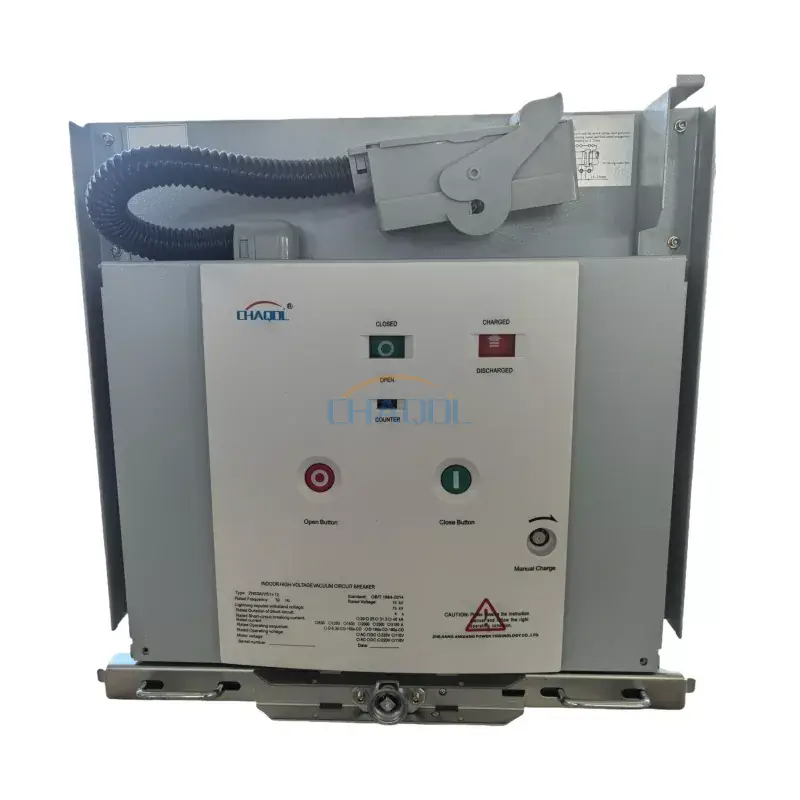

An Indoor High Voltage Circuit Breaker is a switching device designed to safely interrupt normal and fault currents within medium and high-voltage electrical systems. Its primary purpose is to isolate faulty circuits before excessive current damages transformers, switchgear, motors, generators, or distribution networks.
During normal operation, the breaker allows electricity to flow continuously. Once a fault such as overload, short circuit, or ground fault occurs, the protection relay immediately detects the abnormal condition and sends a trip signal to the operating mechanism.
The contacts inside the breaker separate rapidly. As the contacts open, an electrical arc forms. Modern indoor breakers, particularly vacuum circuit breakers, extinguish this arc inside a sealed vacuum interrupter where there are almost no gas particles to sustain the arc. The current is interrupted safely within milliseconds, protecting the entire electrical system.
After maintenance or fault clearance, the breaker can be reset and returned to service, ensuring continuous and reliable power distribution.
Power distribution systems have become increasingly complex. Manufacturing facilities, hospitals, transportation systems, data centers, mining operations, and renewable energy installations all rely on uninterrupted electricity.
Without dependable circuit protection, a single electrical fault may result in:
Indoor High Voltage Circuit Breakers provide fast fault isolation while minimizing the affected area, allowing the remaining electrical network to continue operating safely.
| Component | Function |
|---|---|
| Vacuum Interrupter | Quickly extinguishes electrical arcs during switching operations. |
| Operating Mechanism | Opens and closes the breaker automatically or manually. |
| Insulation System | Provides electrical isolation between live components. |
| Current Carrying Contacts | Conduct electrical current under normal operating conditions. |
| Protection Relay Interface | Receives trip commands from protection systems. |
| Control Circuit | Supports remote operation, monitoring, and automation. |
Indoor High Voltage Circuit Breakers are widely installed across numerous industries due to their reliability and compact design.
Their enclosed design makes them particularly suitable for indoor switchgear where environmental exposure is limited while operational reliability remains critical.
Choosing a high-quality Indoor High Voltage Circuit Breaker provides significant operational advantages.
| Benefit | Customer Value |
|---|---|
| Fast Fault Isolation | Protects expensive electrical assets from severe damage. |
| High Reliability | Reduces unplanned downtime. |
| Long Mechanical Life | Supports thousands of operating cycles. |
| Low Maintenance | Minimizes operating costs throughout the equipment lifecycle. |
| Compact Structure | Saves installation space inside switchgear cabinets. |
| Environmentally Friendly | Vacuum interruption technology avoids oil or SF6 leakage concerns in many applications. |
| Excellent Electrical Performance | Provides stable interruption under demanding operating conditions. |
Selecting the appropriate breaker requires more than matching the voltage rating. Several technical factors should be carefully evaluated.
1. Rated Voltage
Ensure the breaker matches the operating voltage of the electrical system.
2. Rated Current
Choose a breaker capable of carrying the maximum continuous load current safely.
3. Short-Circuit Breaking Capacity
The breaker must interrupt the highest possible fault current without damage.
4. Mechanical Endurance
Applications with frequent switching require breakers designed for high operating cycles.
5. Installation Environment
Consider ambient temperature, humidity, altitude, and enclosure requirements.
6. Intelligent Monitoring
Modern substations increasingly require remote monitoring, diagnostics, and communication capabilities.
7. Manufacturer Experience
Selecting an experienced manufacturer ensures consistent quality, reliable testing, and dependable technical support throughout the project lifecycle.
| Feature | Standard Breaker | Premium Indoor High Voltage Circuit Breaker |
|---|---|---|
| Arc Extinguishing | Basic | High-efficiency Vacuum Interruption |
| Operating Life | Moderate | Extended Mechanical Life |
| Maintenance Frequency | Higher | Lower |
| Reliability | Good | Excellent |
| Automation Support | Limited | Supports Smart Grid Integration |
| Safety Performance | Standard | Enhanced Protection |
Although modern vacuum circuit breakers require relatively little maintenance, regular inspections help maximize equipment lifespan.
Preventive maintenance significantly reduces unexpected failures while improving overall system reliability.
Many project owners focus primarily on purchase price, overlooking long-term operational value.
Evaluating the total lifecycle cost rather than only the initial investment often results in better long-term economic performance.
Anqiang Power specializes in providing dependable power distribution equipment designed for demanding industrial and utility applications. The company's Indoor High Voltage Circuit Breakers are developed with attention to safety, operational stability, and long-term durability.
Customers benefit from dependable manufacturing quality, comprehensive testing procedures, professional engineering support, and products designed to meet the requirements of modern electrical systems. Whether supporting industrial automation, power distribution projects, commercial infrastructure, or energy facilities, Anqiang Power is committed to delivering reliable switching solutions that help customers improve operational efficiency and reduce maintenance costs.
Q1. What is the primary function of an Indoor High Voltage Circuit Breaker?
It protects electrical systems by interrupting overloads, short circuits, and fault currents before equipment damage occurs.
Q2. Why are vacuum circuit breakers widely used indoors?
Vacuum interruption technology offers excellent arc extinguishing performance, long service life, minimal maintenance, and high operational reliability.
Q3. How long does an Indoor High Voltage Circuit Breaker typically last?
With proper maintenance and normal operating conditions, many high-quality breakers provide reliable service for decades while supporting a high number of mechanical operations.
Q4. Can these breakers be integrated into automated substations?
Yes. Many modern breakers support intelligent monitoring, remote control, and communication with digital protection systems.
Q5. What industries commonly use Indoor High Voltage Circuit Breakers?
Utilities, manufacturing, mining, transportation, hospitals, renewable energy projects, petrochemical facilities, commercial buildings, and data centers all rely on these breakers for safe electrical distribution.
Indoor High Voltage Circuit Breakers are one of the most important protective devices in modern electrical infrastructure. Their ability to detect faults, interrupt dangerous currents, and maintain stable power distribution helps reduce downtime, protect valuable equipment, and improve overall operational safety.
When selecting a reliable solution, customers should evaluate technical performance, lifecycle value, manufacturing quality, and after-sales support rather than focusing solely on initial cost. Working with an experienced manufacturer such as Anqiang Power can provide greater confidence in the long-term performance of your electrical system.
Looking for dependable Indoor High Voltage Circuit Breaker solutions for your next project? Anqiang Power is ready to provide professional product recommendations, technical support, and customized solutions tailored to your application. Contact us today to discuss your project requirements and discover how our reliable power distribution products can help improve the safety, efficiency, and long-term performance of your electrical system.
