How Does a Through Core Current Transformer Work?

Abstract: Through core current transformers are critical devices in electrical systems, enabling accurate current measurement for monitoring, protection, and control. This article explores their working principles, advantages, installation considerations, and common customer concerns, helping engineers and facility managers make informed decisions.

Table of Contents

• What is a Through Core Current Transformer?
• Working Principle of Through Core Current Transformers
• Key Advantages
• Installation Considerations
• Typical Applications
• Common Issues and Troubleshooting
• FAQ

What is a Through Core Current Transformer?

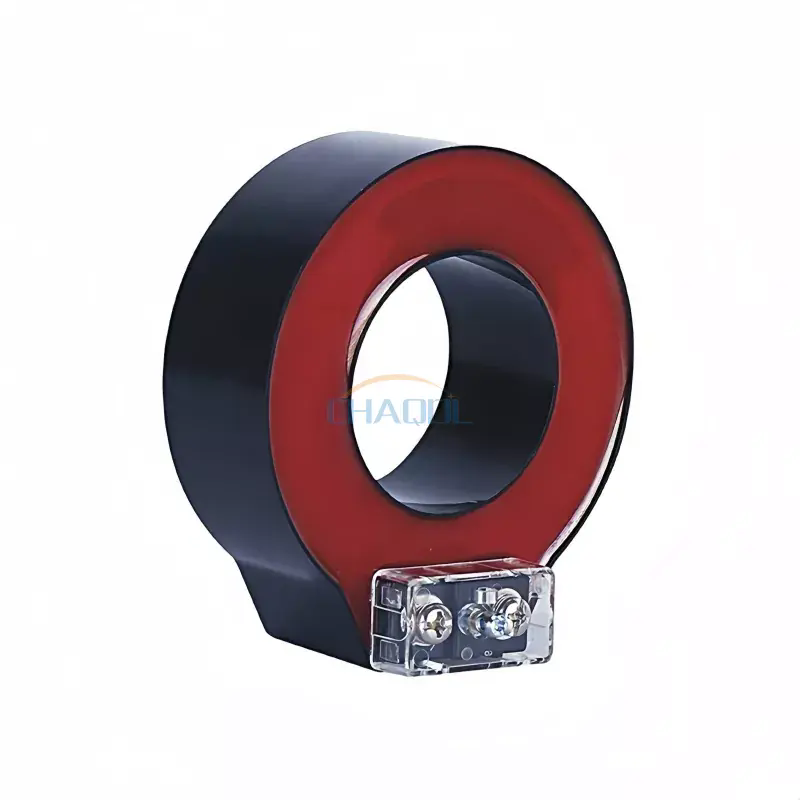

A Through Core Current Transformer (TCCT) is an electrical device designed to measure alternating current (AC) by producing a reduced current proportional to the current in the primary circuit. Unlike window-type or split-core transformers, the conductor passes directly through the core of the TCCT, enabling a compact design and accurate measurement.

• Primary Conductor passes through the core directly
• Secondary winding provides scaled-down current for measurement
• Used for protection relays, meters, and monitoring systems

Working Principle of Through Core Current Transformers

The TCCT operates based on electromagnetic induction. The primary conductor generates a magnetic field proportional to the current flowing through it. This magnetic field induces a current in the secondary winding, which can then be safely measured by instruments without direct exposure to high voltage.

Key Advantages

• Compact Design: Fits easily into switchgear and panel installations.
• High Accuracy: Reliable measurements for protective relays and metering devices.
• Durable: Robust construction for long-term operation in industrial environments.
• Easy Maintenance: Minimal servicing required due to simple construction.

Installation Considerations

Proper installation ensures optimal performance of TCCTs. Key factors include:

1. Ensure the primary conductor is centered through the core to avoid measurement errors.
2. Verify correct secondary wiring and polarity for accurate readings.
3. Maintain appropriate insulation distances to prevent electrical hazards.
4. Consider environmental conditions: temperature, humidity, and vibration can affect performance.

For specific installation guides and safety recommendations, Anqiang Power provides detailed manuals for each TCCT model.

Typical Applications

• Energy metering in industrial and commercial facilities
• Current monitoring for switchgear and transformers
• Protective relay circuits in substations
• Integration into SCADA systems for remote monitoring

Common Issues and Troubleshooting

Even high-quality TCCTs may encounter operational issues. Common problems include:

• Incorrect Ratio Output: Often caused by secondary wiring mistakes or incorrect core selection.
• Overheating: Usually due to excessive primary current or poor ventilation.
• Magnetic Saturation: Can distort measurements in high-current applications.
• Mechanical Damage: Physical shocks or vibration may affect core alignment.

Troubleshooting generally involves verifying wiring, checking for insulation damage, and confirming that the device is rated correctly for the application.

FAQ

• Q: Can TCCTs measure both AC and DC currents?
  A: No, through core current transformers are designed for AC measurement only due to their reliance on electromagnetic induction.
• Q: How do I select the right TCCT for my application?
  A: Consider primary current rating, accuracy class, insulation level, and environmental conditions.
• Q: Are through core CTs maintenance-free?
  A: They require minimal maintenance, mainly inspection for physical damage and wiring integrity.
• Q: What makes Anqiang Power’s TCCTs different?
  A: Anqiang Power emphasizes precision manufacturing, durability, and support for complex installations.

Through core current transformers are indispensable in modern electrical systems, providing accurate measurement, protection, and monitoring capabilities. By understanding their principles, installation, and common concerns, engineers can ensure reliable operation across all applications.
