An outdoor high voltage load switch is a critical component in modern power distribution networks, designed to ensure safe, reliable, and efficient management of electricity flow. This article explores the functionality, benefits, types, and selection criteria for high voltage load switches, while addressing common operational challenges and customer concerns. With structured guidance, tables, this guide helps engineers, utility managers, and industrial operators make informed decisions.

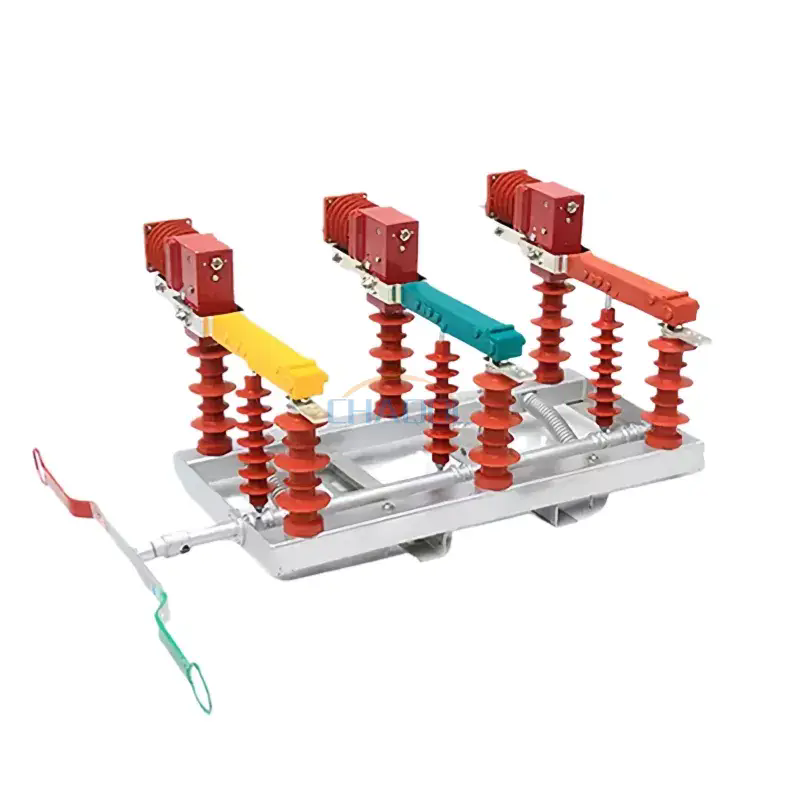

An outdoor high voltage load switch is a specialized electrical device used in medium and high voltage power distribution systems. It enables operators to connect or disconnect electrical circuits safely under load conditions, protecting equipment and ensuring uninterrupted power flow. Unlike simple circuit breakers, load switches are optimized for frequent operation and outdoor conditions.
These switches are widely applied in utility substations, industrial plants, and distribution networks where system reliability and operational safety are critical.
The primary function of a high voltage load switch is to control electricity flow while ensuring safe operation. It works through a combination of mechanical contacts, insulating structures, and arc extinguishing systems.
Advanced load switches also integrate sensors and communication modules for remote monitoring and system automation.
Outdoor high voltage load switches provide multiple benefits in electrical networks:
For utility companies, the integration of high voltage load switches is a key factor in meeting regulatory requirements and maintaining stable power delivery.
| Parameter | Description |
| Rated Voltage | Typically 12kV, 24kV, 36kV, up to 40.5kV |
| Rated Current | Range from 630A to 1250A depending on system load |
| Interrupting Capacity | Ability to safely break short-circuit currents up to 25kA |
| Insulation Medium | Air, SF6, or epoxy resin |
| Operating Mechanism | Manual, spring-assisted, or motorized |
| Environmental Rating | IP65 or higher for outdoor protection |
| Mounting | Pole-mounted or substation-mounted |
Anqiang provides outdoor high voltage load switches designed for reliability, durability, and safe performance in various environmental conditions.
Different types of load switches cater to specific operational needs:
Selecting the appropriate type depends on system voltage, load requirements, and environmental conditions.
Choosing an outdoor high voltage load switch requires careful consideration of technical and operational factors:
Partnering with a reliable manufacturer like Anqiang ensures optimal performance, warranty support, and engineering guidance.
Proper installation and maintenance are crucial for operational safety and longevity:
Routine preventive maintenance minimizes operational risks and enhances reliability in high-voltage networks.
Q1: Can outdoor high voltage load switches operate under full load?
Yes, they are specifically designed to perform switching under load safely without damaging contacts or insulation.
Q2: How long is the service life of a load switch?
Depending on usage and environmental conditions, high-quality switches can operate reliably for 20–30 years with proper maintenance.
Q3: Are SF6 load switches environmentally safe?
Modern SF6 switches are designed with sealed systems and minimal leakage, complying with environmental standards. Regular inspection is recommended.
Q4: Can load switches be integrated into smart grid systems?
Yes, motorized and sensor-equipped switches support remote control, automation, and real-time monitoring for smart grids.
An outdoor high voltage load switch is essential for reliable, safe, and efficient power distribution. It protects equipment, enables flexible operation, and ensures the safety of personnel in high-voltage networks. Careful selection, installation, and maintenance are critical for achieving maximum performance and longevity.
Anqiang offers high-quality outdoor high voltage load switches designed to meet diverse operational requirements with precision and durability.
To enhance your power distribution network with reliable and safe switching solutions, contact us today for professional guidance, customized options, and technical support.
